Fax:+359 431 62 230 ; +359 431 63 134 | Pic | Shema | Description | Code |
Qnom (l/min) |
Pmax (bar) |
|
 |
 |

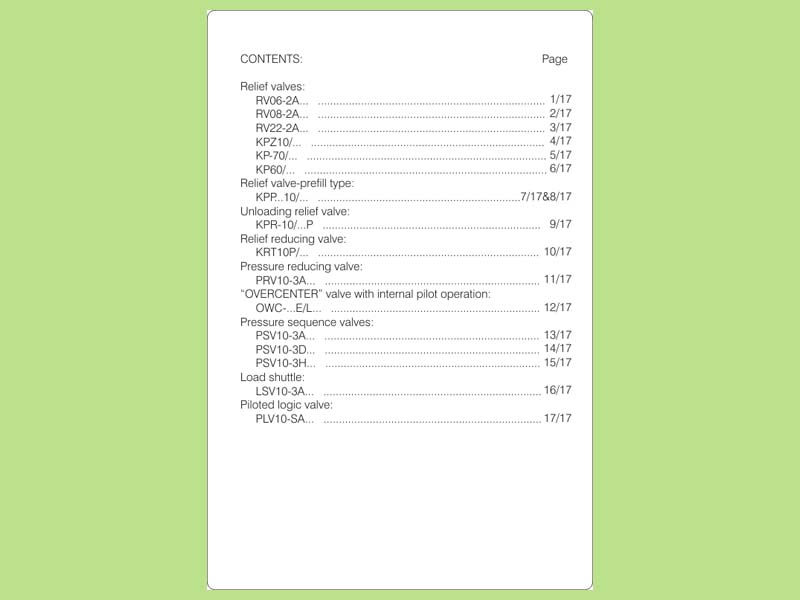

Group catalogue |
 |
|||
 |
 |

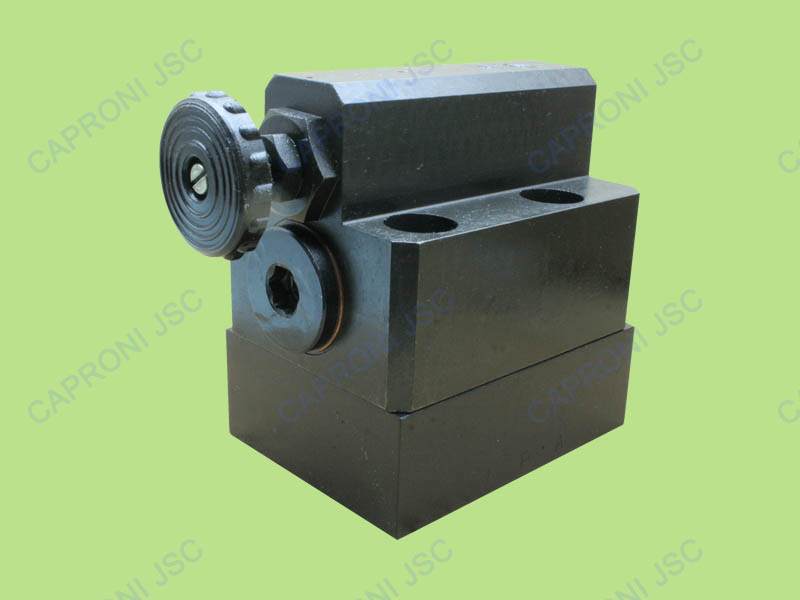

Relief valve-prefill type pilot operated for plate mounting |
KPP...10/... | 160 (Δp=2,5 bar) | 100/200/320 |
|
 |
 |

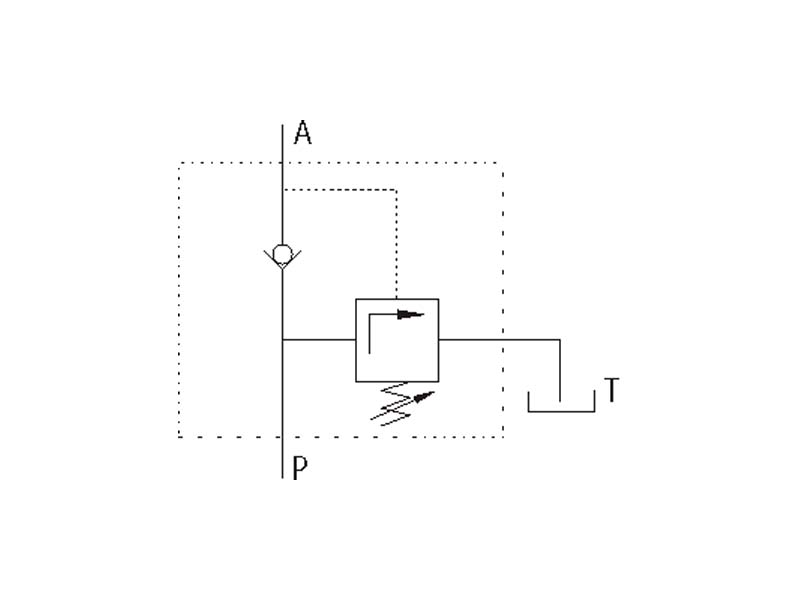

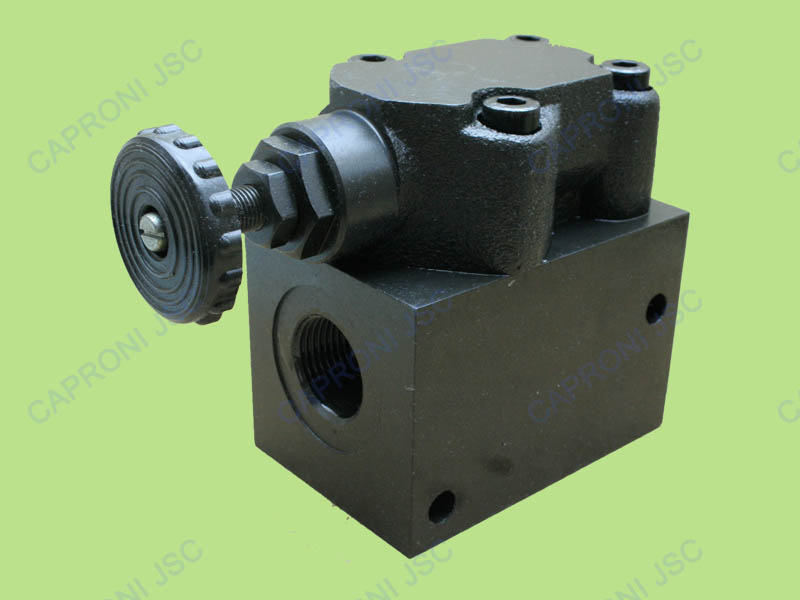

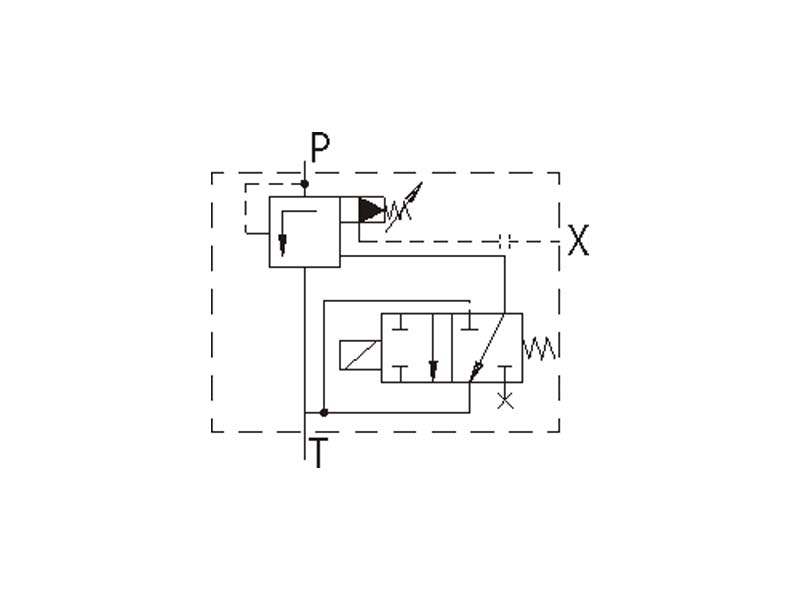

Unloading relief valve for plate mounting |
KPR-10/...P | 40 (Δp=2,5 bar) | 63/100 |
|
 |
 |
Pressure reducing valve 3-way for plate mounting |
KRT 10P/... | 60 (Δp=2,5 bar) | 100/200/320 |
|
 |
 |

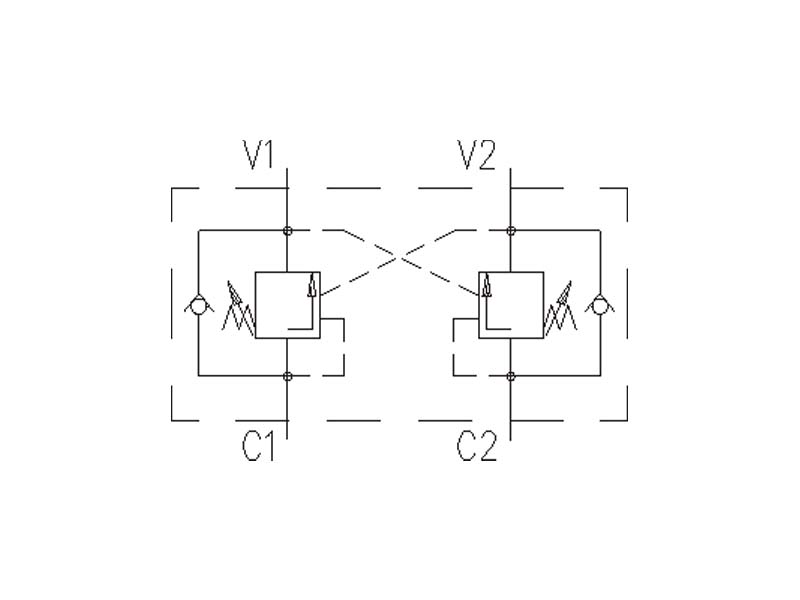

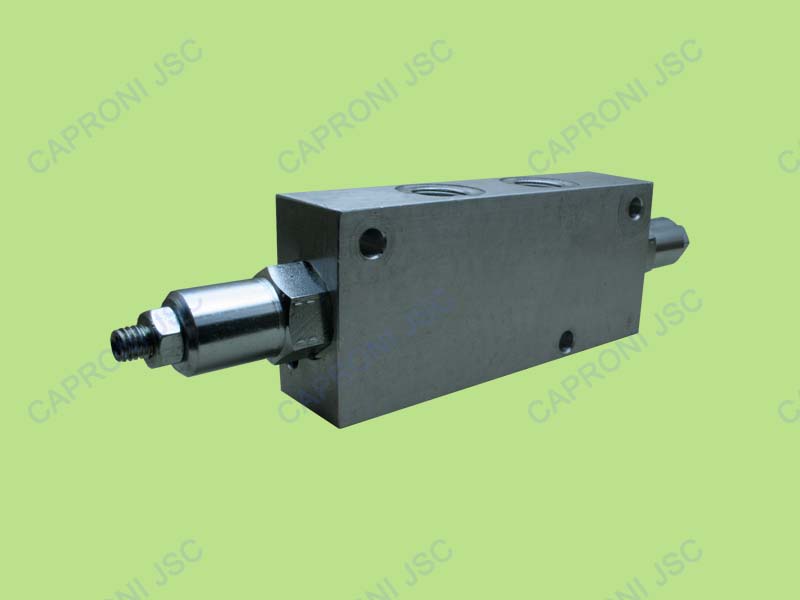

Counterbalance valve type "Overcenter" for pipe mounting |
OWC-...E/L... | 35 (Δp=2,5 bar) | 250 |
|
 |
 |

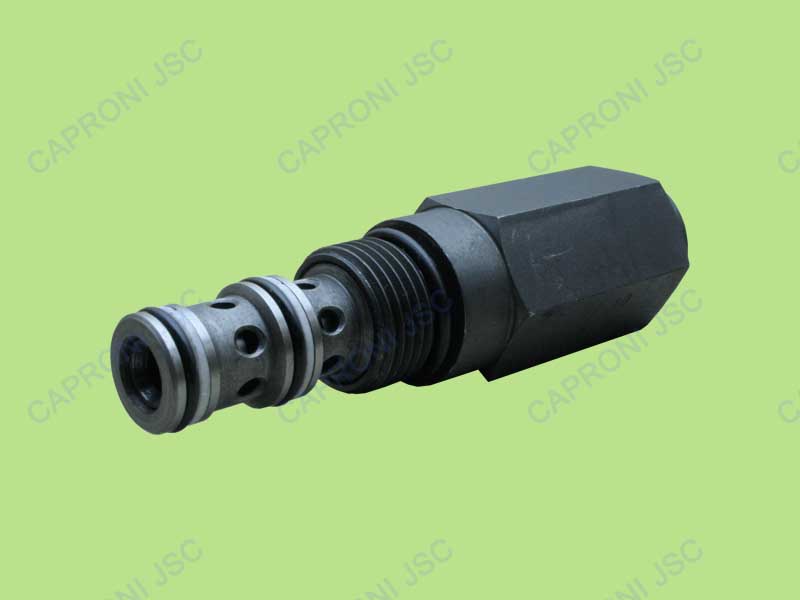

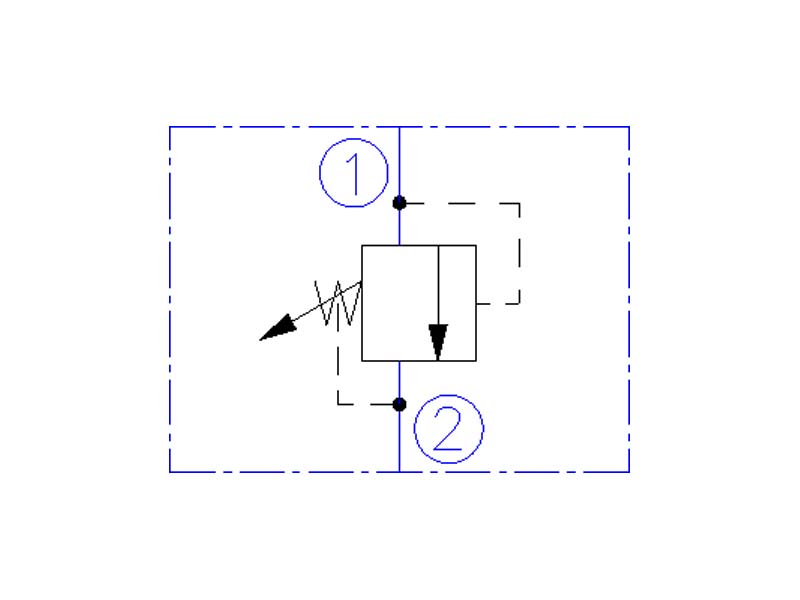

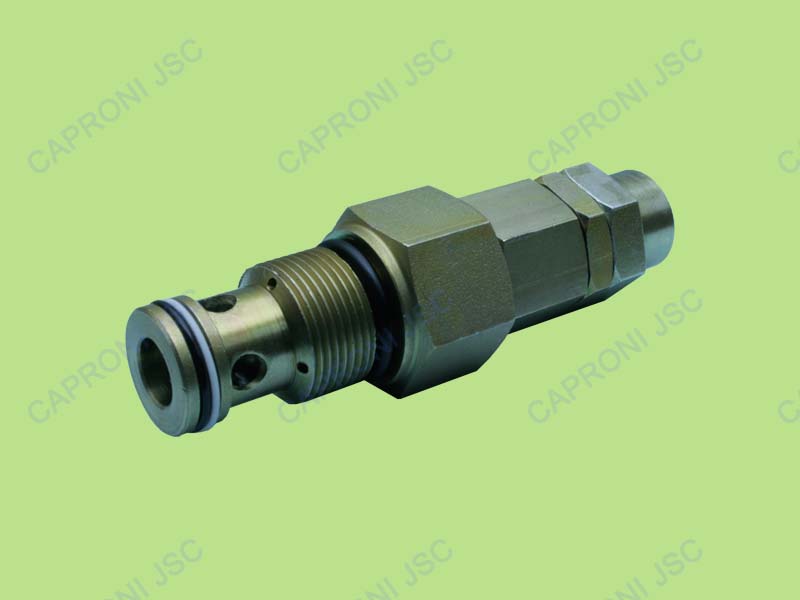

Pressure relief valve direct acting cartridge style |
RV06-2A... | 20 (Δp=2,5 bar) | 80/160/250 |
|
 |
 |
Pressure relief valve direct acting cartridge style |
RV08-2A... | 25 (Δp=2,5 bar) | 80/160/250 |
|
 |
 |
Pressure relief valve direct acting cartridge style |
RV22-2A... | 40 (Δp=2,5 bar) | 100/200/315 |
|
 |
 |

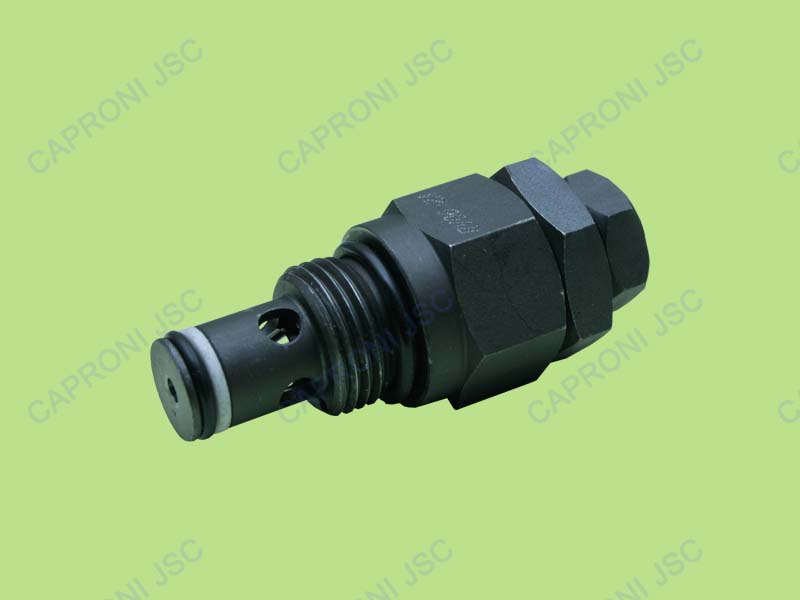

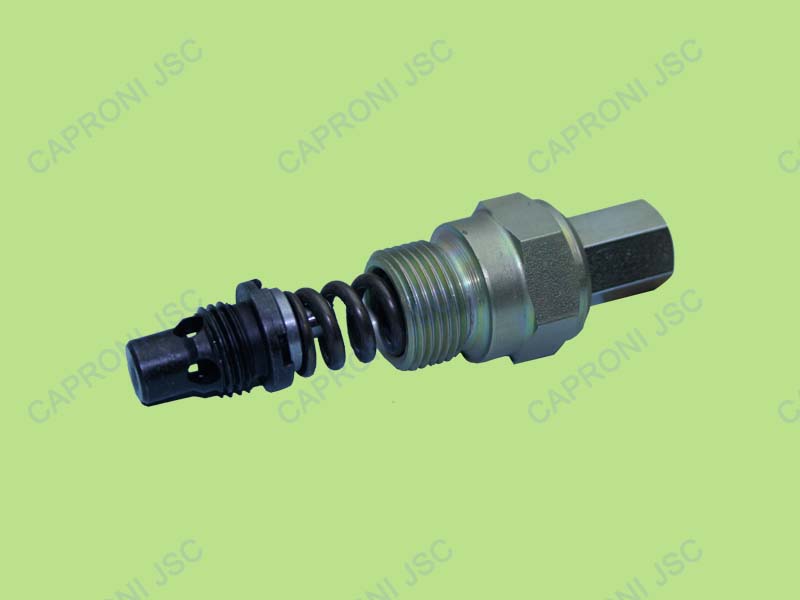

Pressure relief valve direct operated, cartridge style |
KP60/... | 60 (Δp=20 bar) | 100/200/320 |
|
 |
 |

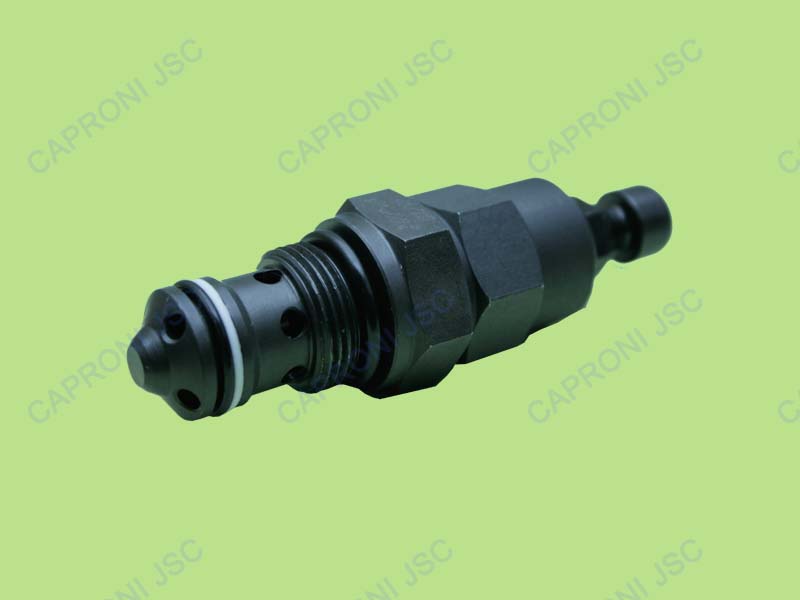

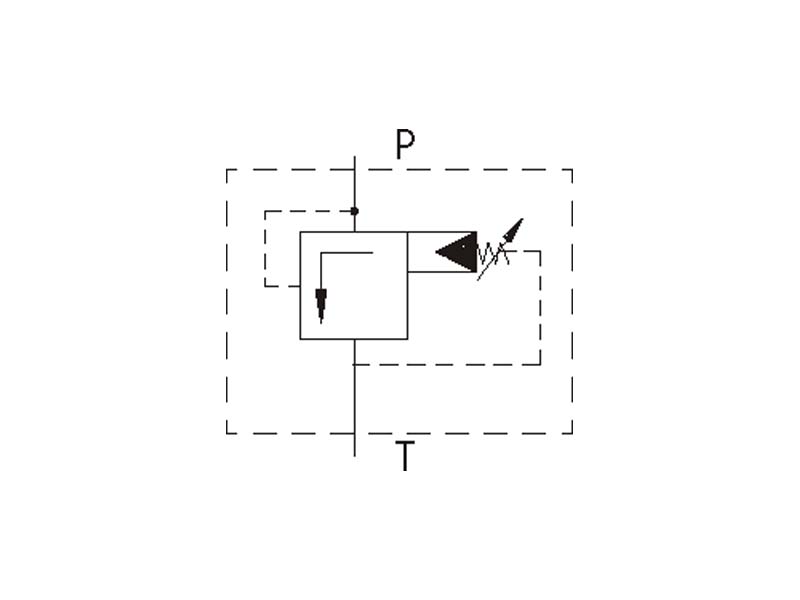

Pressure relief valve pilot operated, cartridge style |
KP70/... | 70 (Δp=20 bar) | 200/320 |
|
 |
 |
Pressure relief valve direct acting cartridge style |
RM80 | 80 (Δp=20 bar) | 130/300 |
|
 |
 |
Pressure relief valve pilot operated, cartridge style |
KPZ-10/... | 160 (Δp=20 bar) | 100/200/320 |
|
 |
 |

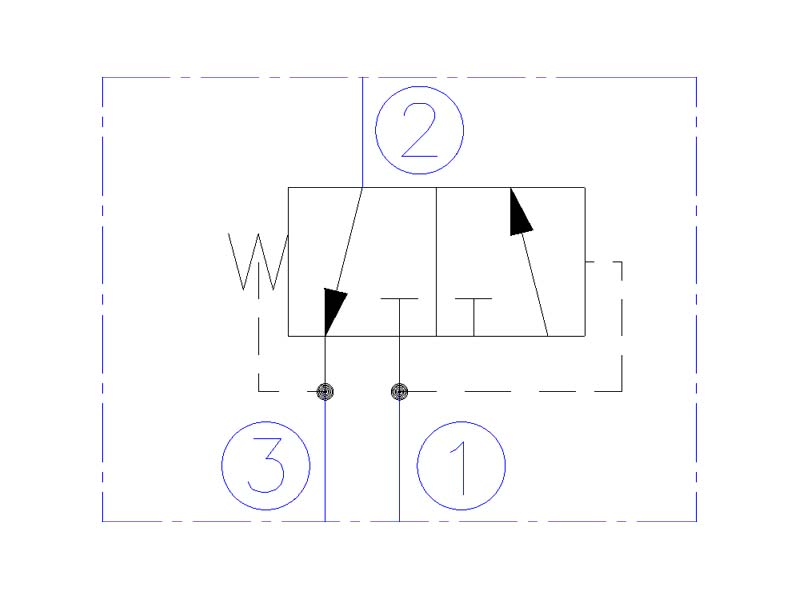

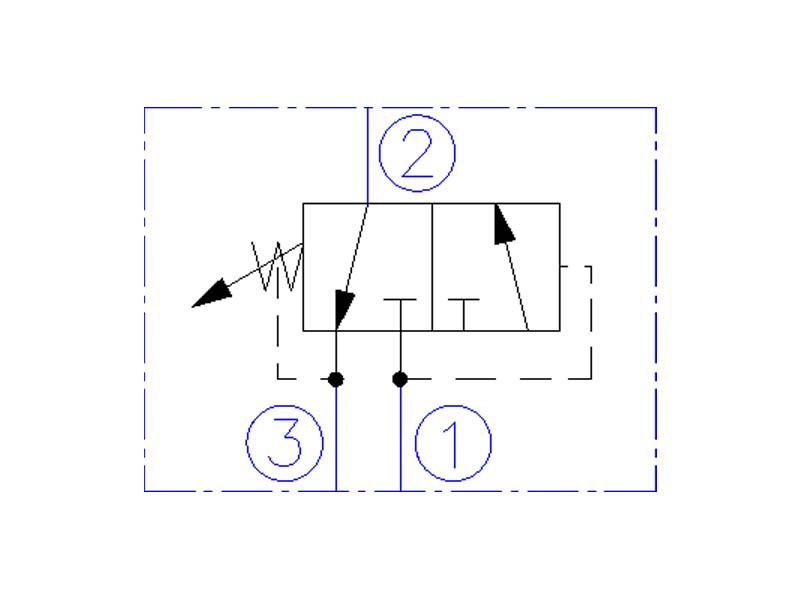

Pressure reducing valve 3-way direct acting, spool type, cartridge style |
PRV10-3A... | 30 (Δp=2,5 bar) | 30/60/100/140 |
|
 |
 |

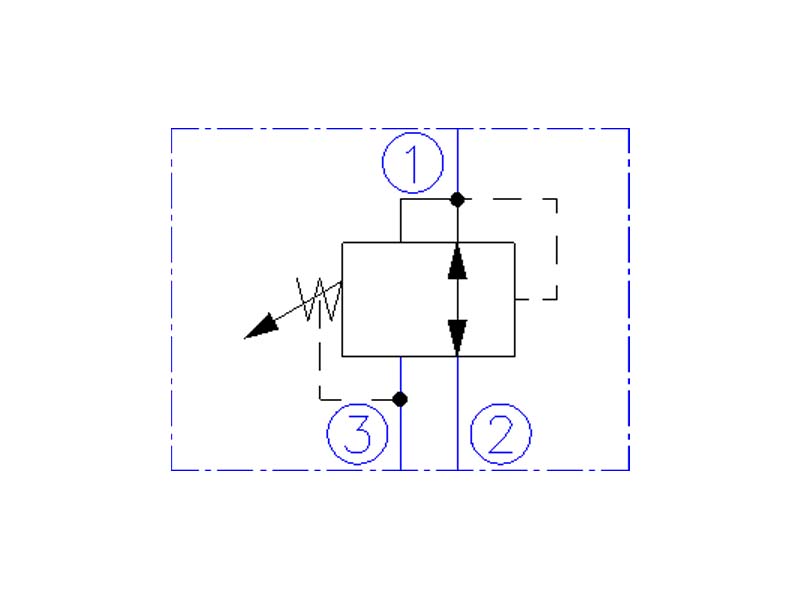

Pressure sequence valve 3-way direct acting, spool type, cartridge style |
PSV10-3A... | 23 (Δp=2,5 bar) | 200 |
|
 |
 |
Pressure sequence valve 3-way direct acting, spool type, cartridge style |
PSV10-3D... | 23 (Δp=8,8 bar) | 200 |
|
 |
 |
Pressure sequence valve 3-way direct acting, spool type, cartridge style |
PSV10-3H... | 34 (Δp=7 bar) | 200 |
|
 |
 |

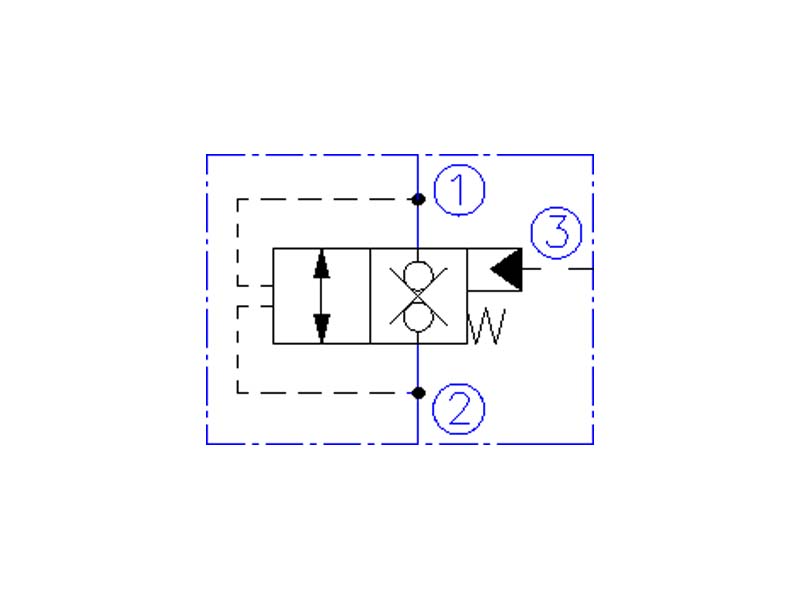

Logical valve pilot operated, cartridge style |
PLV10-SA | 61 (Δp=8,6 bar) | 350 |
|
 |
 |

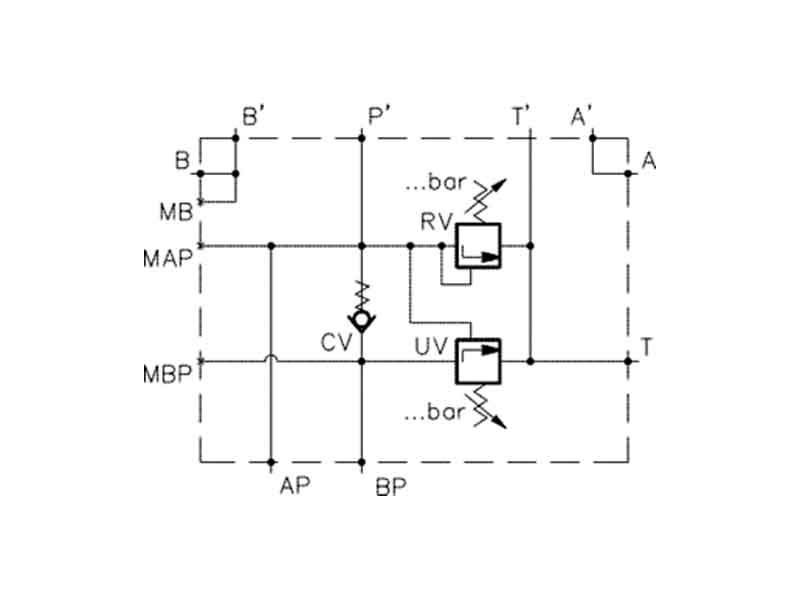

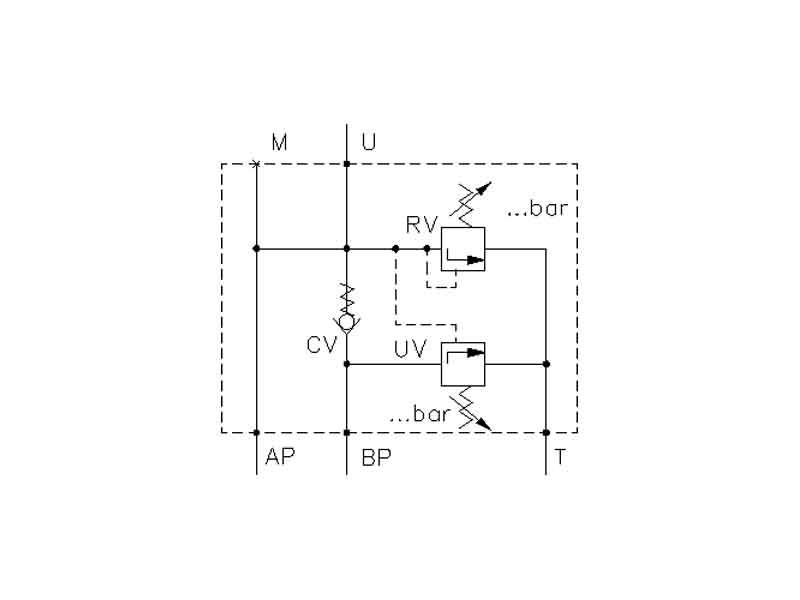

Two pump „HI-LOW” unloading valve , flangeable CETOP5 (NG10) |
UVP-NG10 | AP-20 ; BP-55 | AP-300 ; BP-70 |
|
 |
 |
Two pump “hi-low” unloading valve |
UVP-... | AP-15/25 BP-30/45;T-40/65 | AP-300 ; BP-80 |
|
