Fax:+359 431 62 230 ; +359 431 63 134 | Pic | Shema | Description | Code |
Qnom (l/min) |
Pmax (bar) |
|
 |
 |

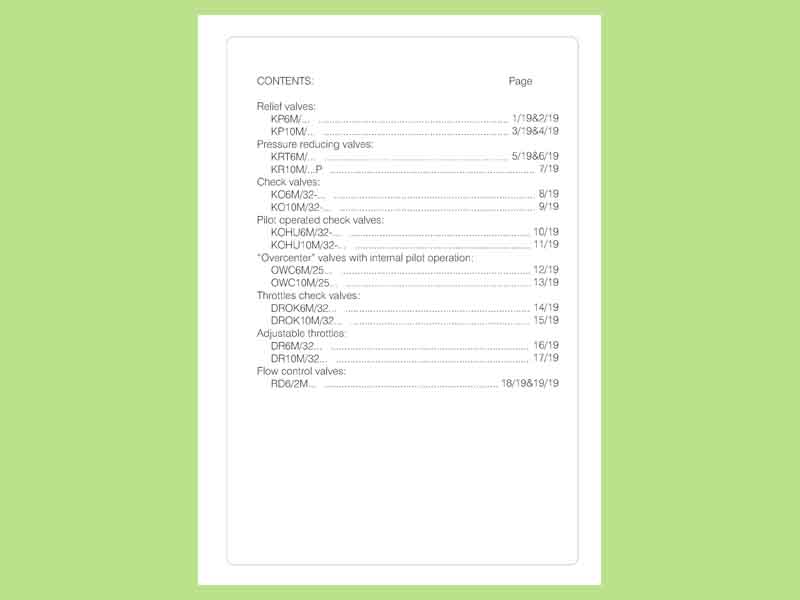

Gruop catalogue |
 |
|||
 |
 |

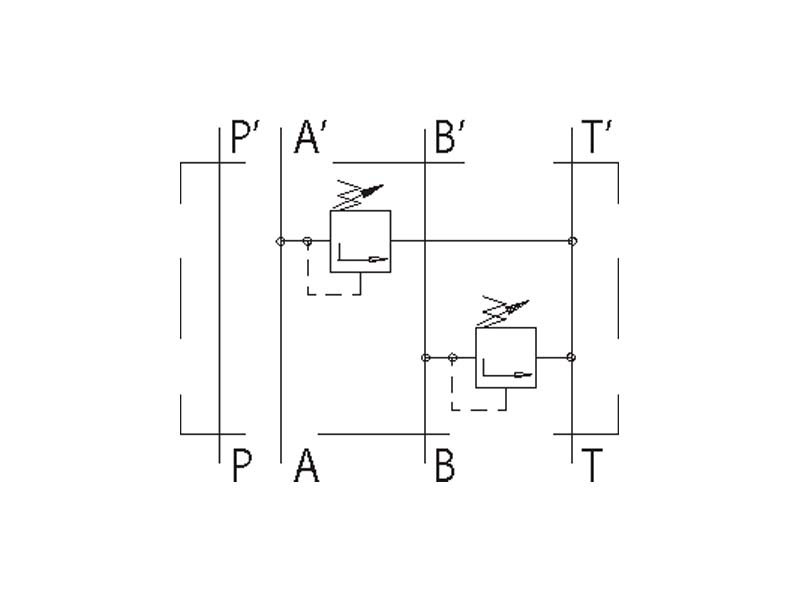

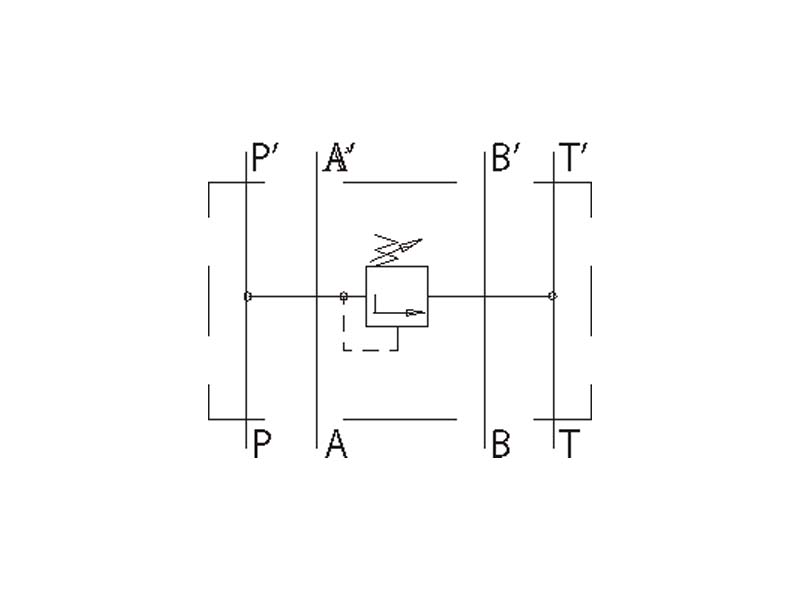

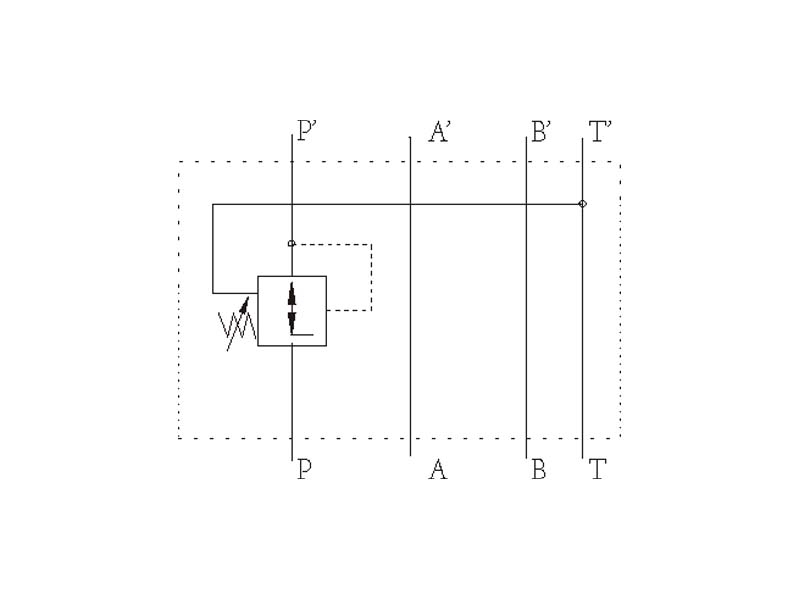

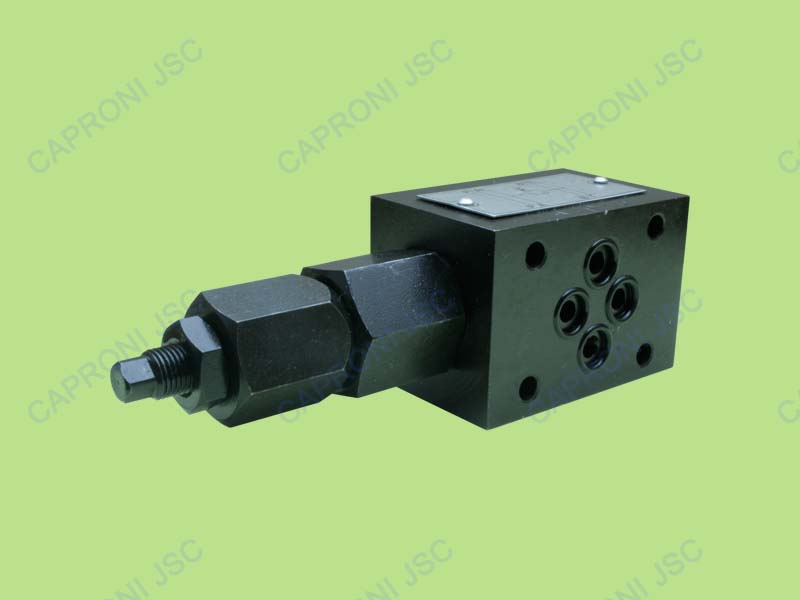

Relief valve pilot operated for modular mounting CETOP3(NG6) |
KP6M/... | 20 (Δp=2,5 bar) | 100/200/320 |
|
 |
 |
Relief valve pilot operated for modular mounting CETOP5(NG10) |
KP10M/... | 20 (Δp=2,5 bar) | 100/200/320 |
|
 |
 |

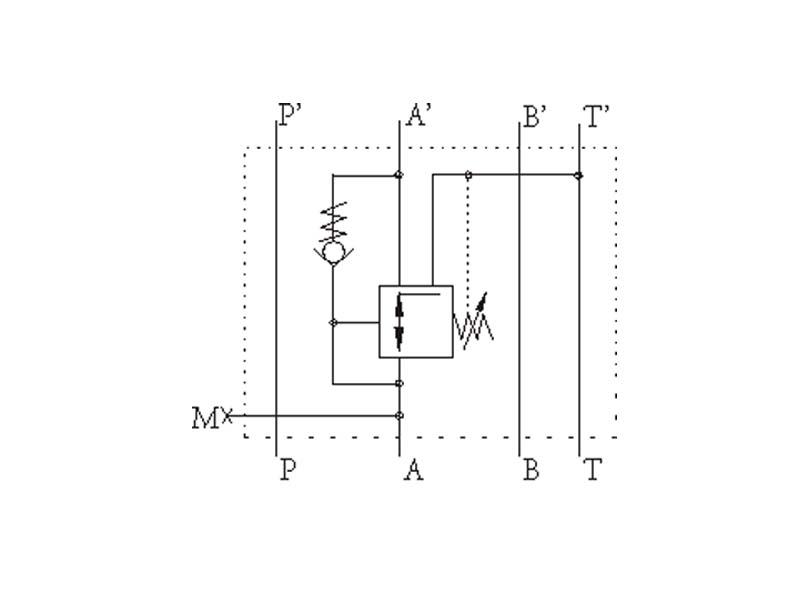

Pressure reducing valve 3-way for modular mounting CETOP3(NG6) |
KRT6M/... | 20 (Δp=2,5 bar) | 16/100/210 |
|
 |
 |
Pressure reducing valve 2-way for modular mounting CETOP5(NG10) |
KR10M/...P | 40 (Δp=2,5 bar) | 100/200/320 |
|
 |
 |

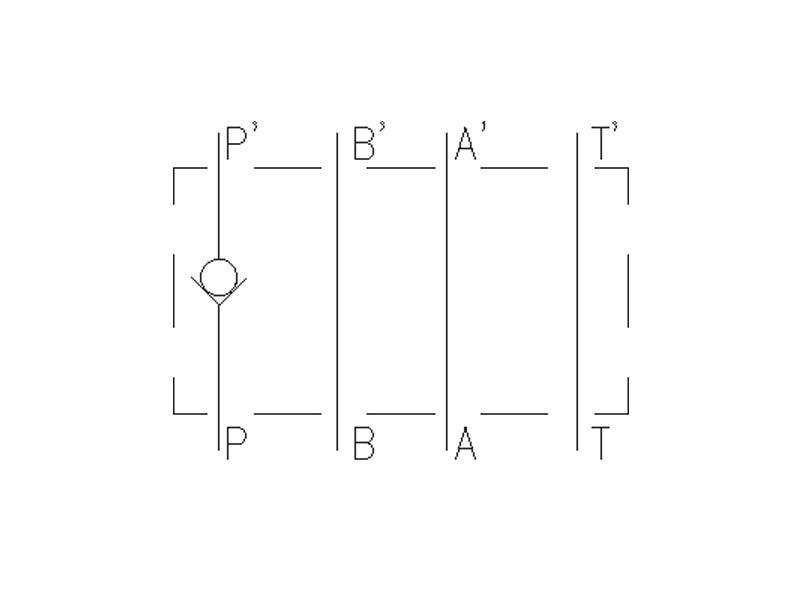

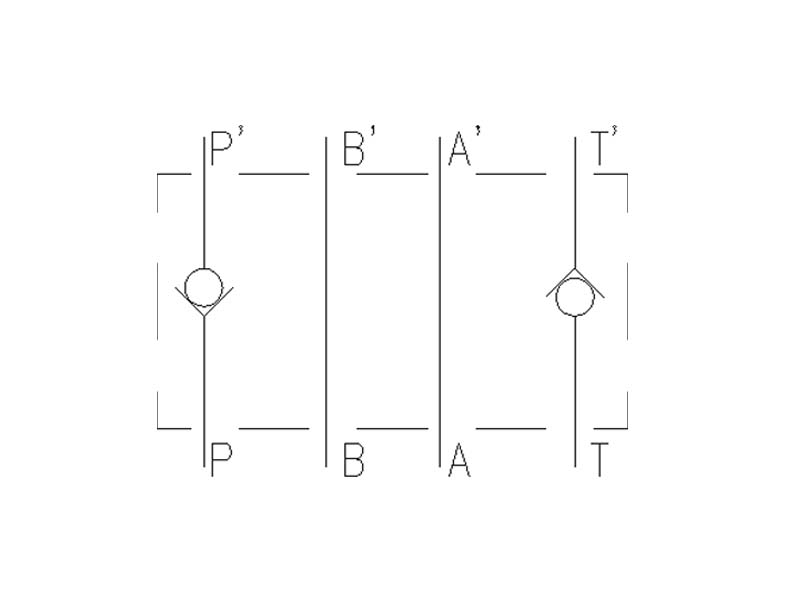

Check valve for modular mounting CETOP3(NG6) |
KО6M/32... | 30 (Δp=5 bar) | 320 |
|
 |
 |
Check valve for modular mounting CETOP5(NG10) |
KО10M/32... | 40 (Δp=5 bar) | 320 |
|
 |
 |

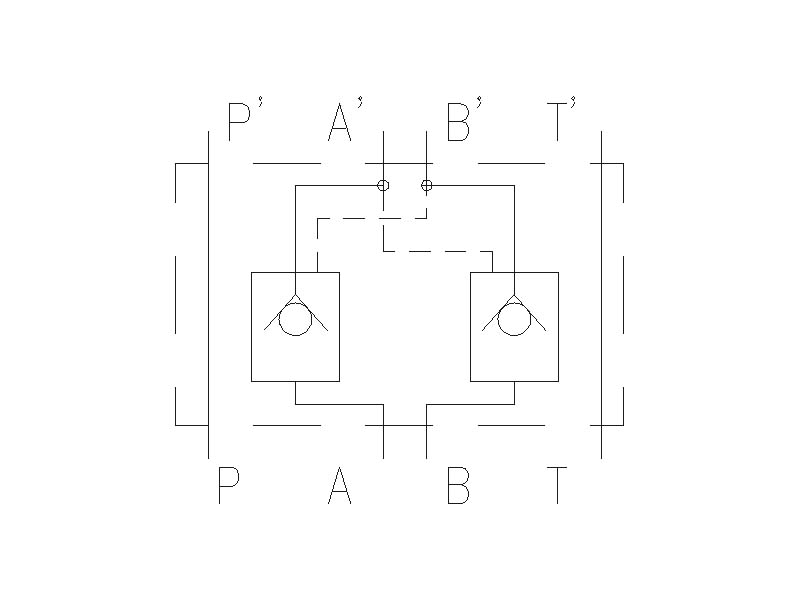

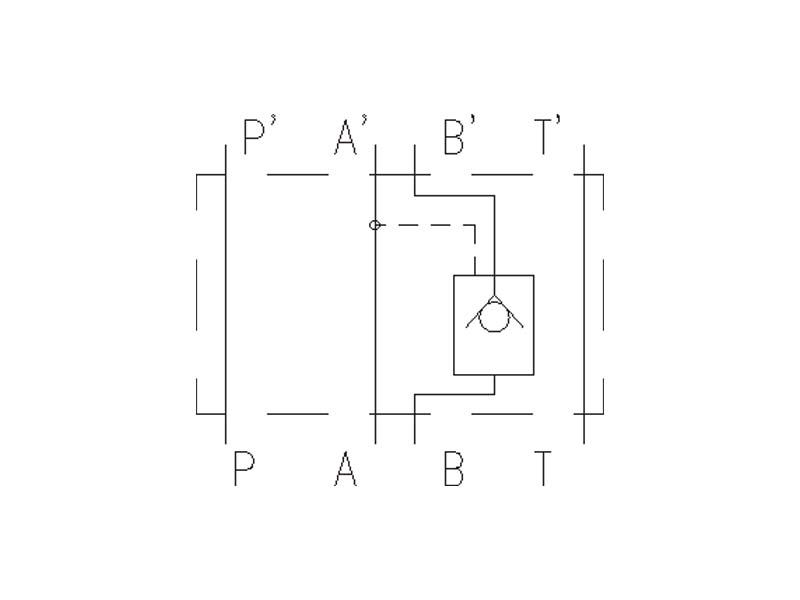

Pilot operated check valve for modular mounting CETOP3(NG6) |
KОHU6M/32-... | 20 (Δp=2,5 bar) | 320 |
|
 |
 |
Pilot operated check valve for modular mounting CETOP5(NG10) |
KОHU10M/32-... | 40 (Δp=2,5 bar) | 320 |
|
 |
 |

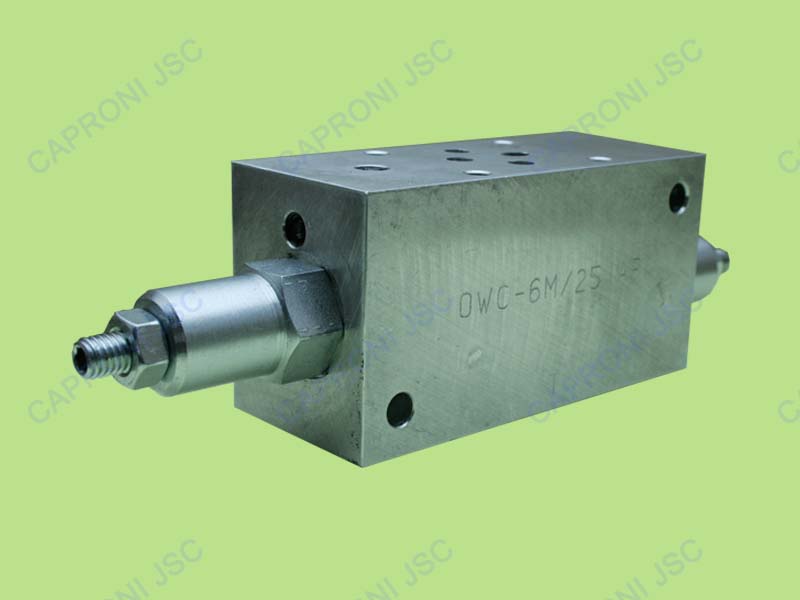

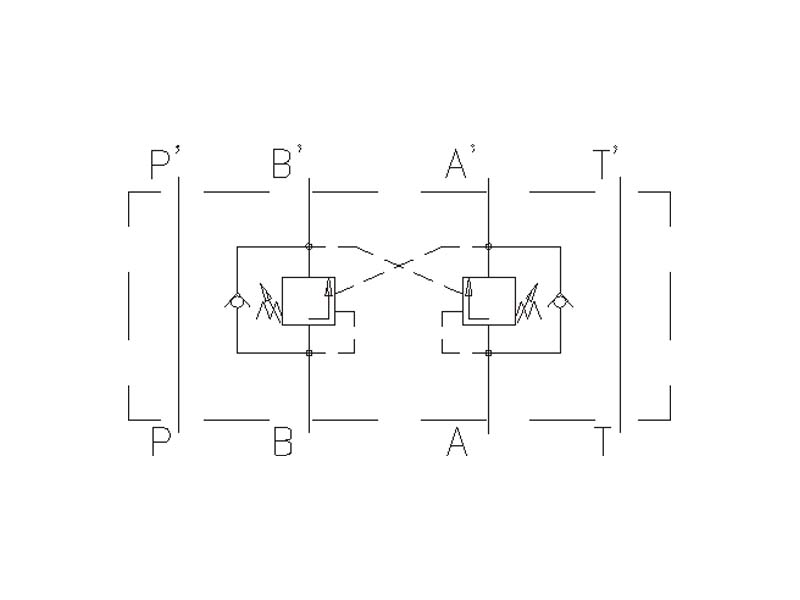

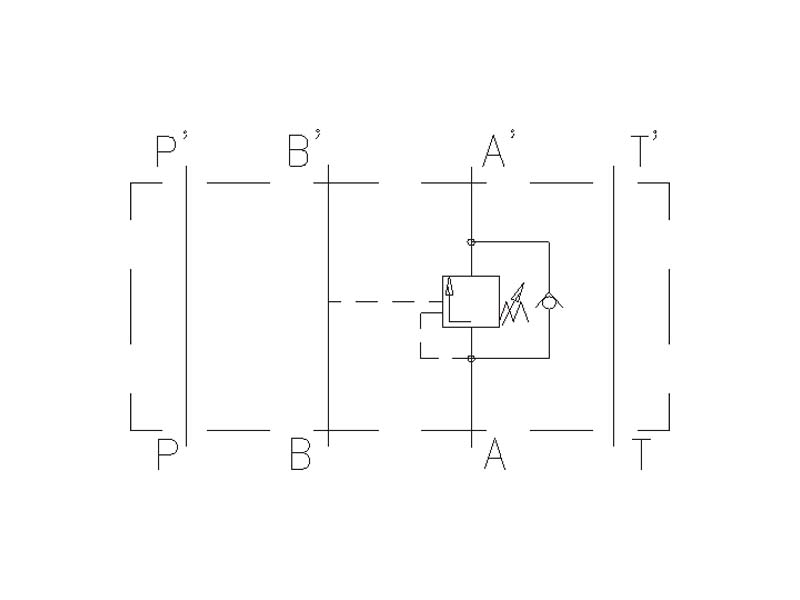

Counterbalance valve type "Overcenter" pilot operated for modular mounting CETOP3(NG6) |
OWC6M/25... | 20 (Δp=2,5 bar) | 250 |
|
 |
 |
Counterbalance valve type "Overcenter" pilot operated for modular mounting CETOP5(NG10) |
OWC10M/25... | 80 (Δp=2,5 bar) | 250 |
|
 |
 |

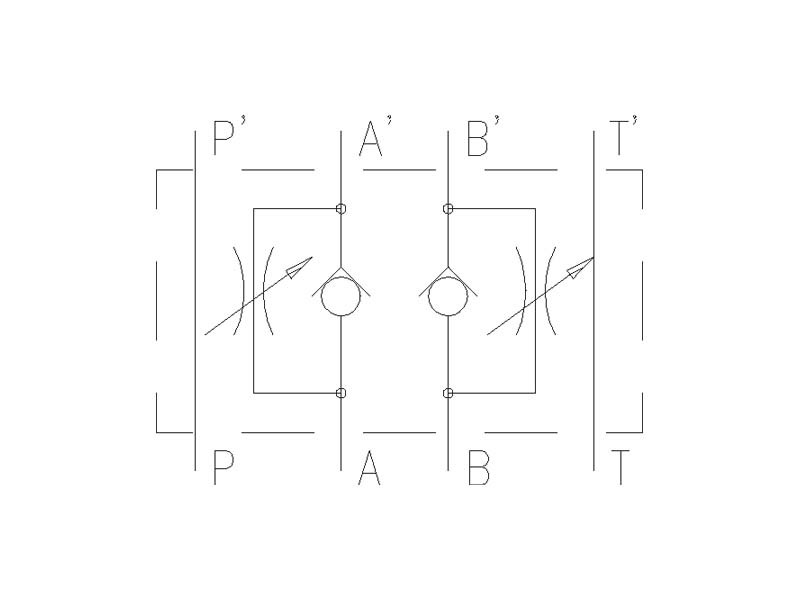

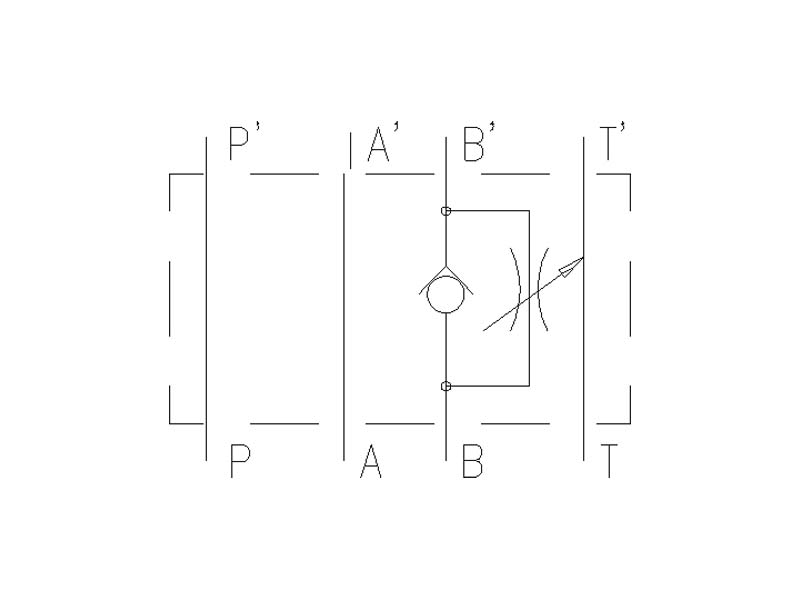

Throttle check valve for modular mounting CETOP3(NG6) |
DROK6M/32-... | 20 (Δp=3,5 bar) | 320 |
|
 |
 |
Throttle check valve for modular mounting CETOP5(NG10) |
DROK10M/32-... | 40 (Δp=2,5 bar) | 320 |
|
 |
 |

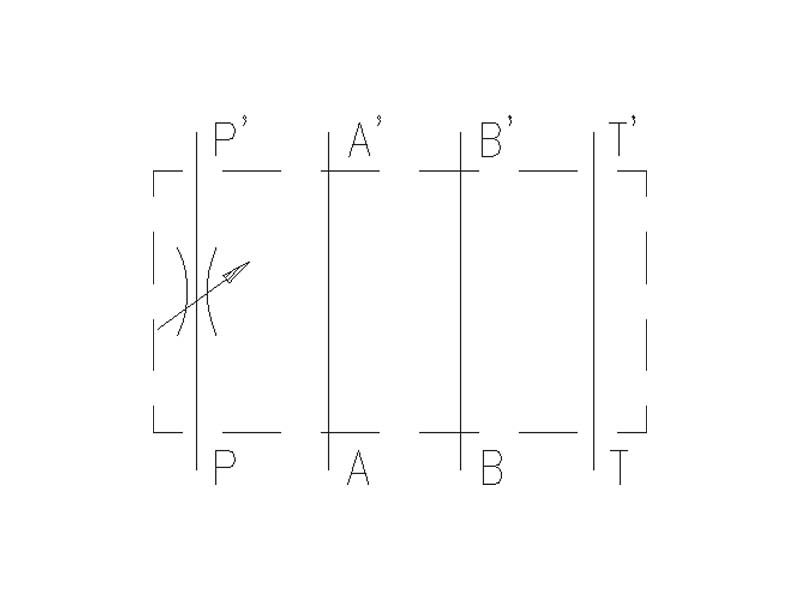

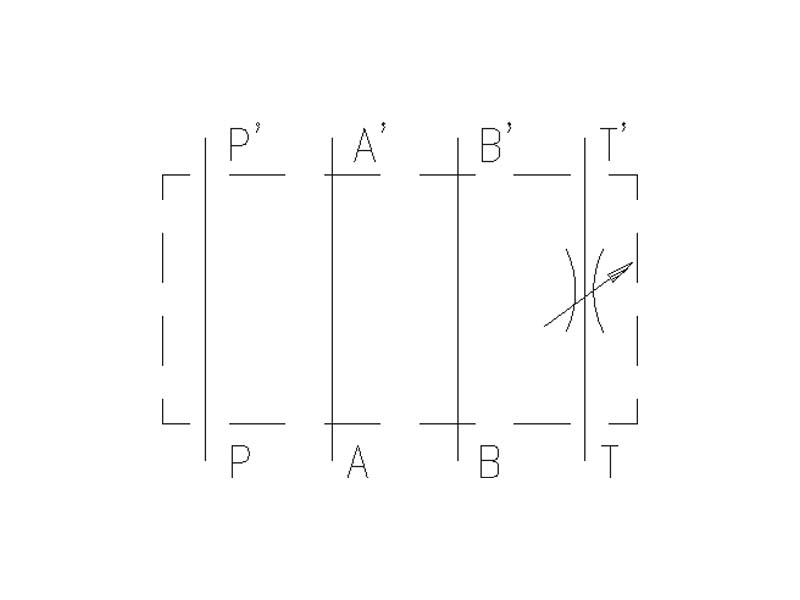

Adjustable throttle for modular mounting CETOP3(NG6) |
DR6M/32... | 20 (Δp=2,5 bar) | 320 |
|
 |
 |
Adjustable throttle for modular mounting CETOP3(NG6) |
DR10M/32... | 40 (Δp=2,5 bar) | 320 |
|
 |
 |

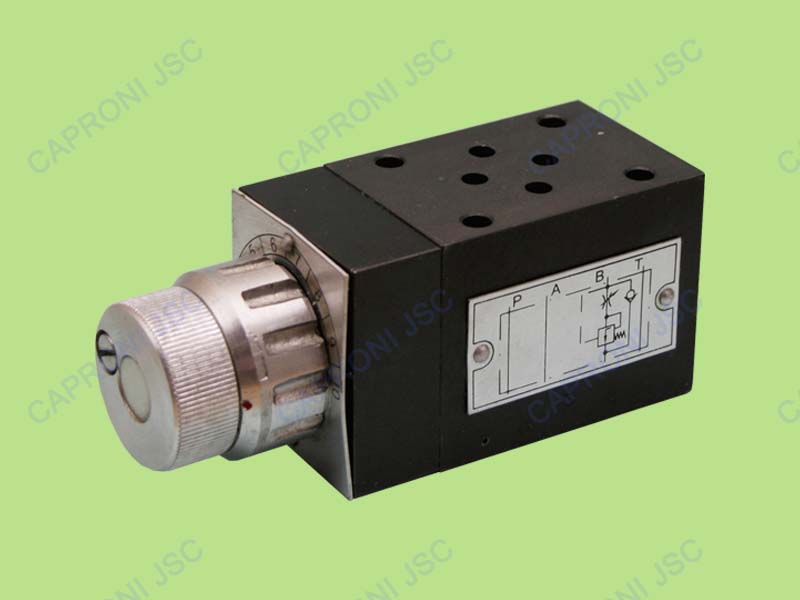

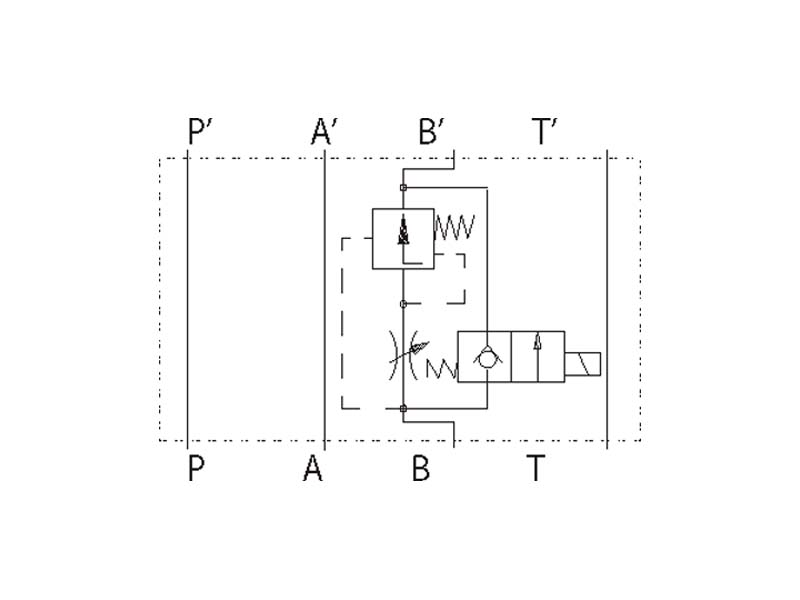

Flow regulator 2-way for modular mounting CETOP3(NG6) |
RD6/2M... | 10 (Δp=2,5 bar) | 320(250 with solenoid valves) |
|
