Fax:+359 431 62 230 ; +359 431 63 134 | Pic | Shema | Description | Code |
Qnom (l/min) |
Pmax (bar) |
|
 |
 |

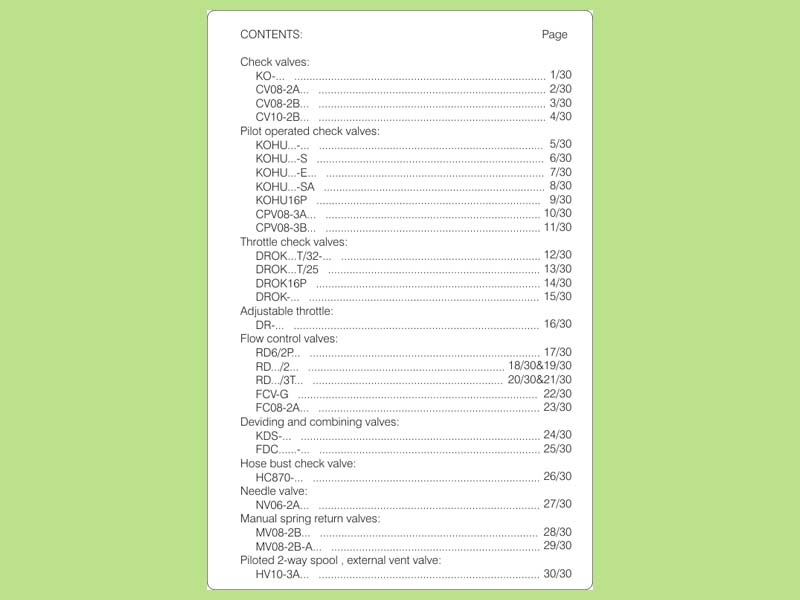

Gruopi catalogue |
 |
|||
 |
 |

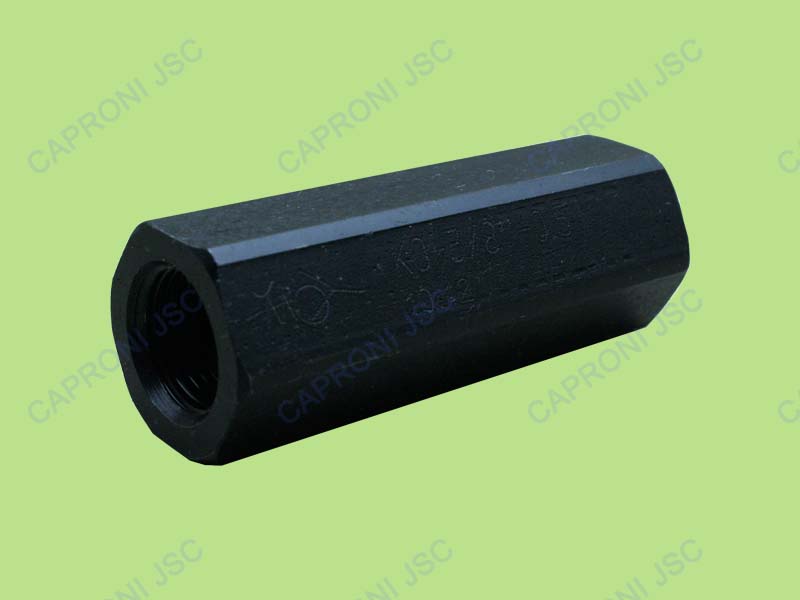

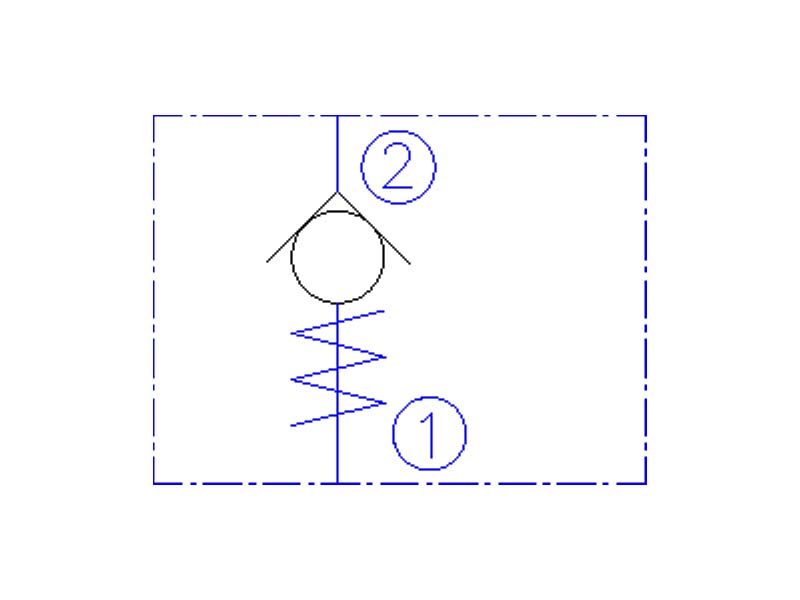

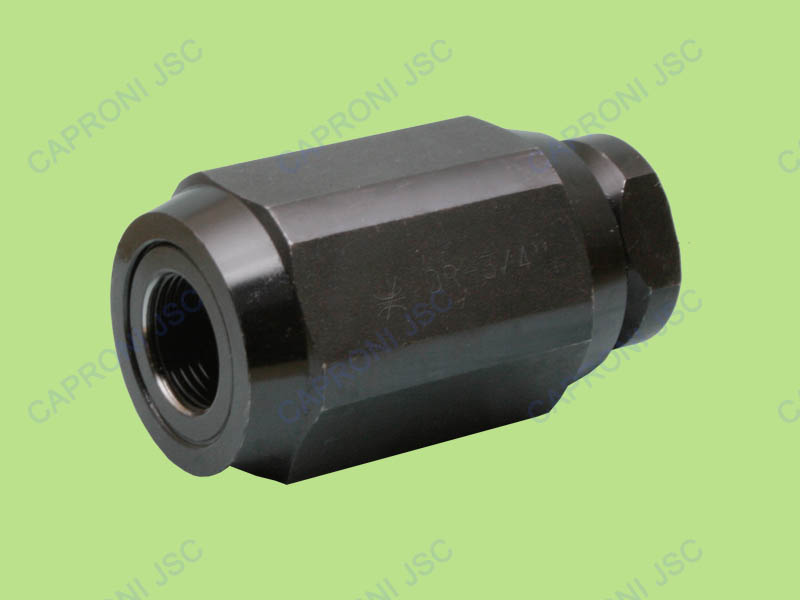

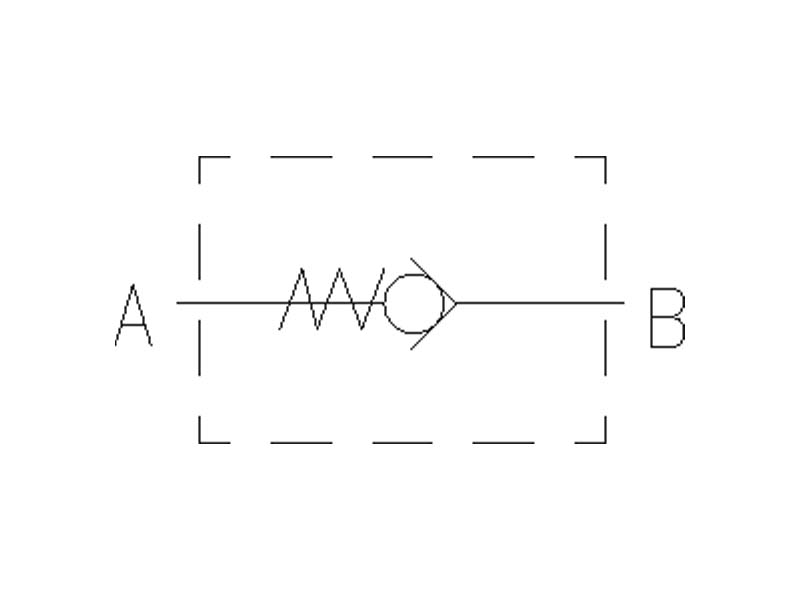

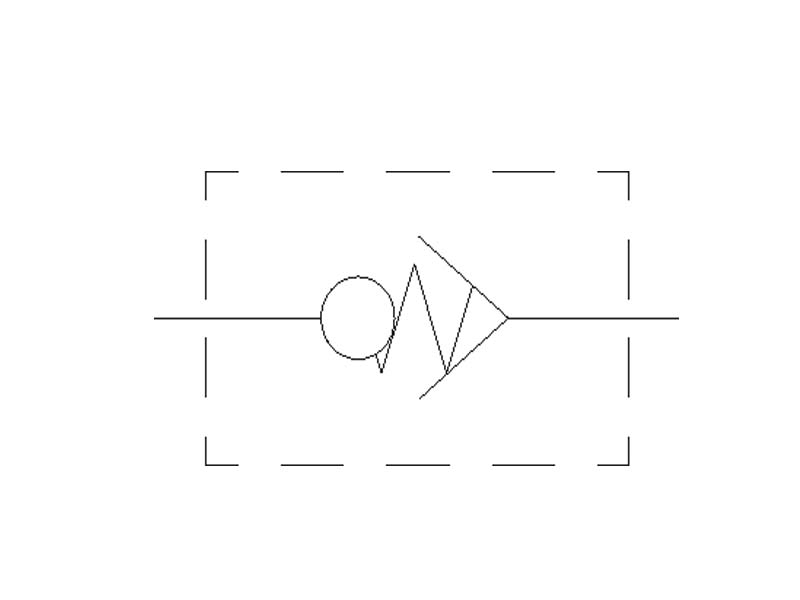

Check valve for pipe mounting |
KO-... | 10/20/40/60/90/120 (Δp=1 bar) | 320 |
|
 |
 |

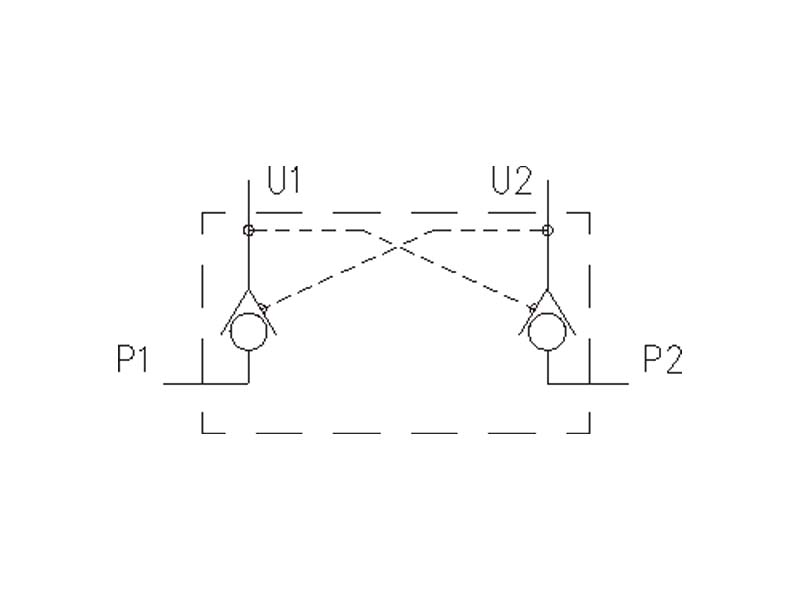

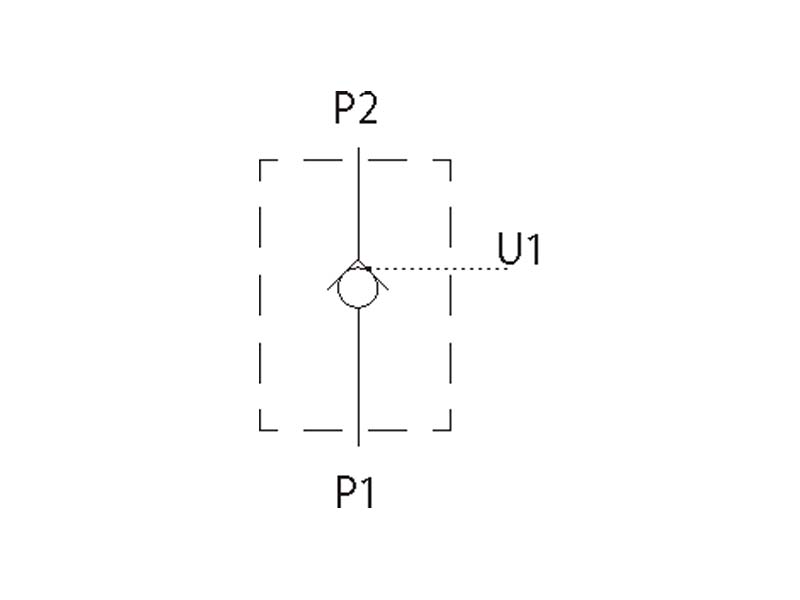

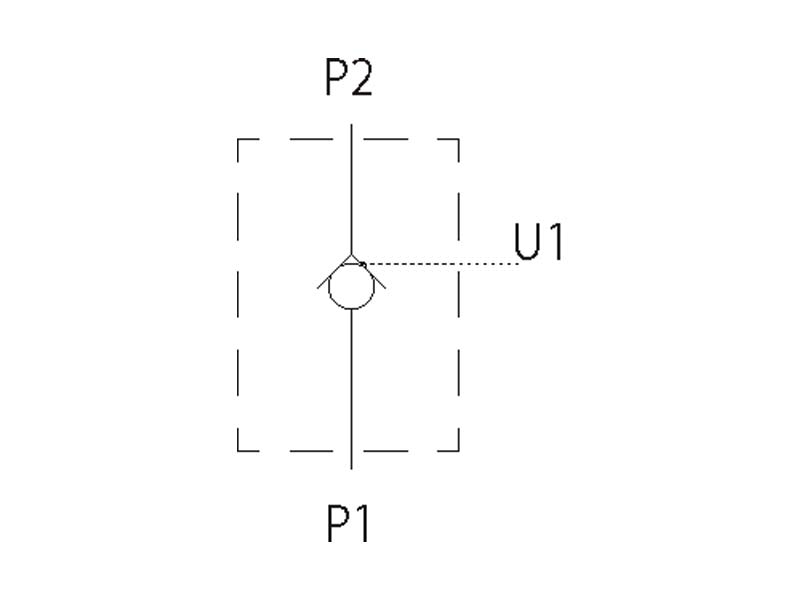

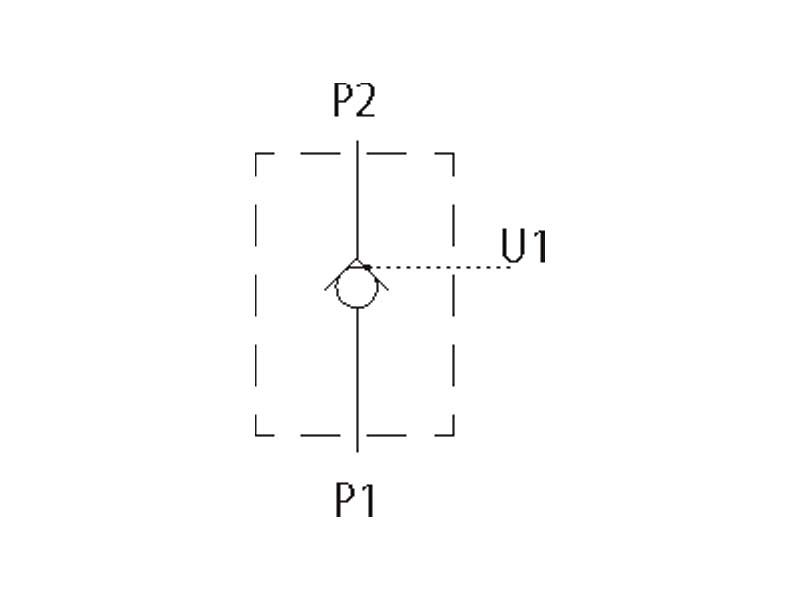

Pilot operated check valve for pipe mounting |
KOHU... | 12/20/45 (Δp=1 bar) | 320 |
|
 |
 |
Pilot operated check valve for pipe mounting |
KOHU...-E... | 20/30/45 (Δp=1 bar) | 320 |
|
 |
 |
Pilot operated check valve for pipe mounting |
KOHU...-S | 12/20/45 | 320 |
|
 |
 |

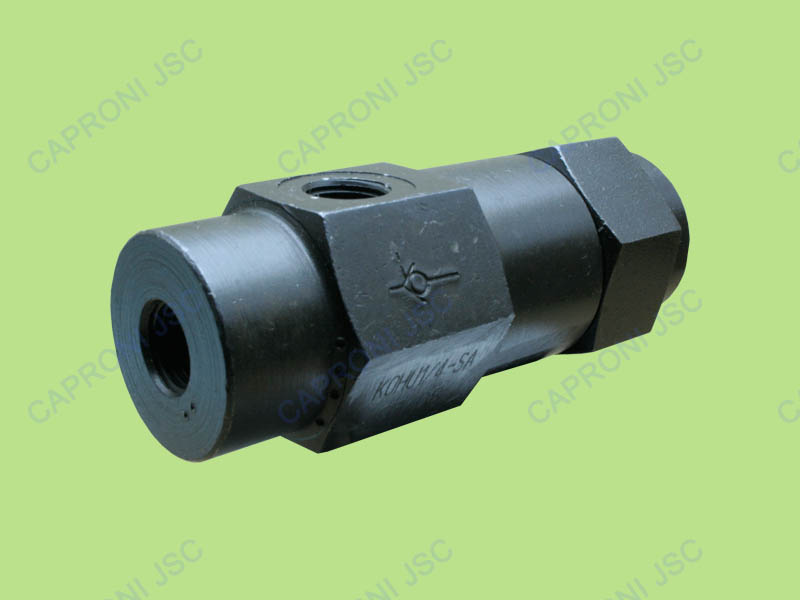

Pilot operated check valve for pipe mounting |
KOHU...-SA | 12/20/45 (Δp=1 bar) | 320 |
|
 |
 |

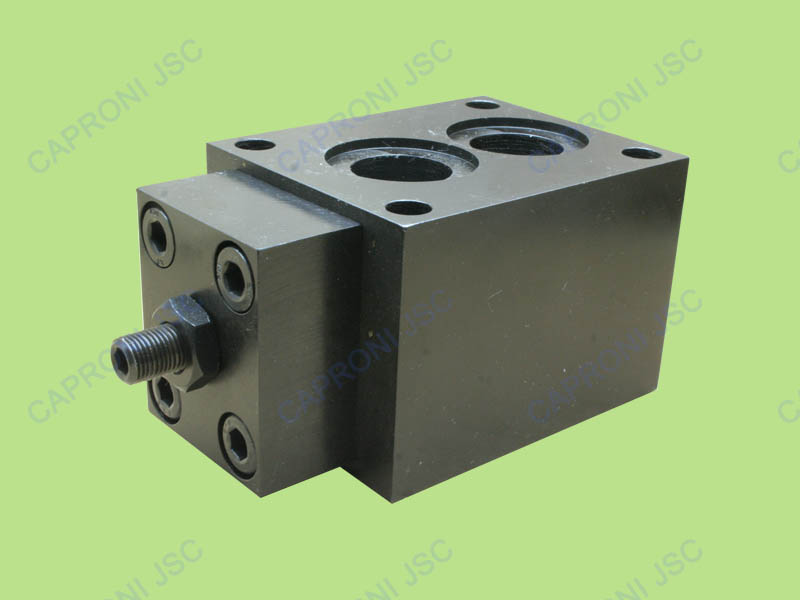

Pilot operated check valve for plate mounting |
KOHU16P | 160 (Δp=1 bar) | 320 |
|
 |
 |

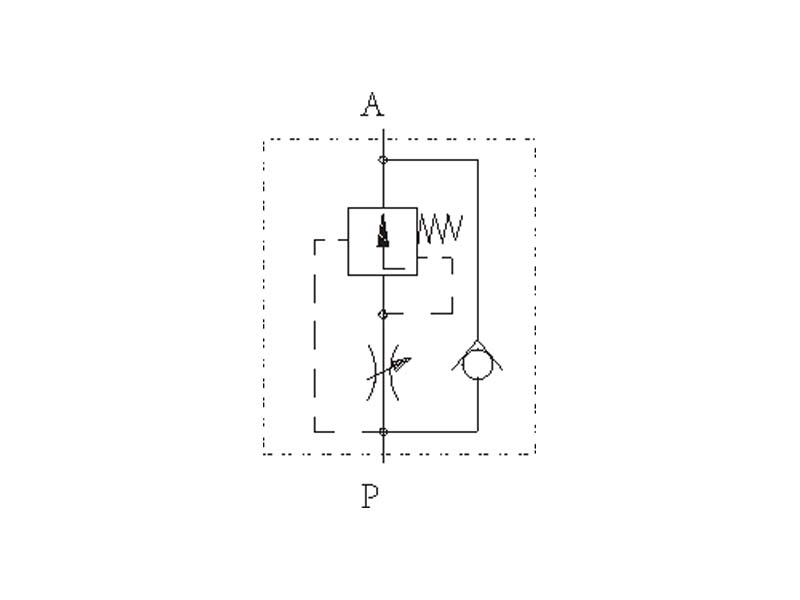

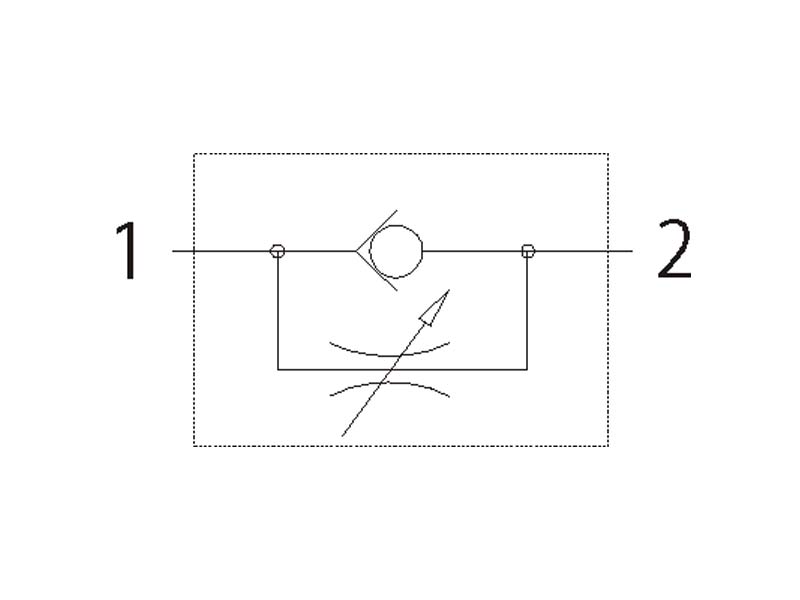

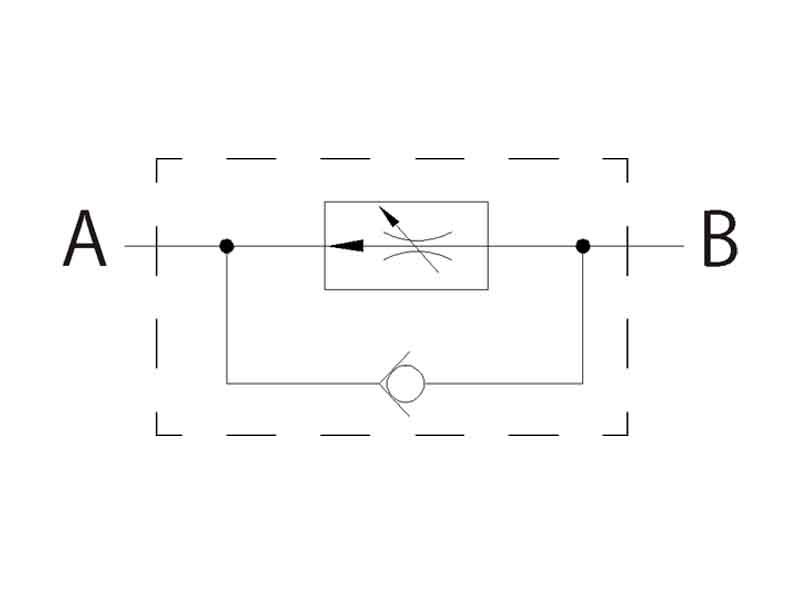

Throttle chech valve for pipe mounting |
DROK...T/32-... | 20/40 (Δp=2,5 bar) | 320 |
|
 |
 |
Throttle chech valve for pipe mounting |
DROK...T/25 | 20/40/63 (Δp=2,5 bar) | 250 |
|
 |
 |
Throttle chech valve for plate mounting |
DROK16Р | 160 (Δp=2,5 bar) | 320 |
|
 |
 |

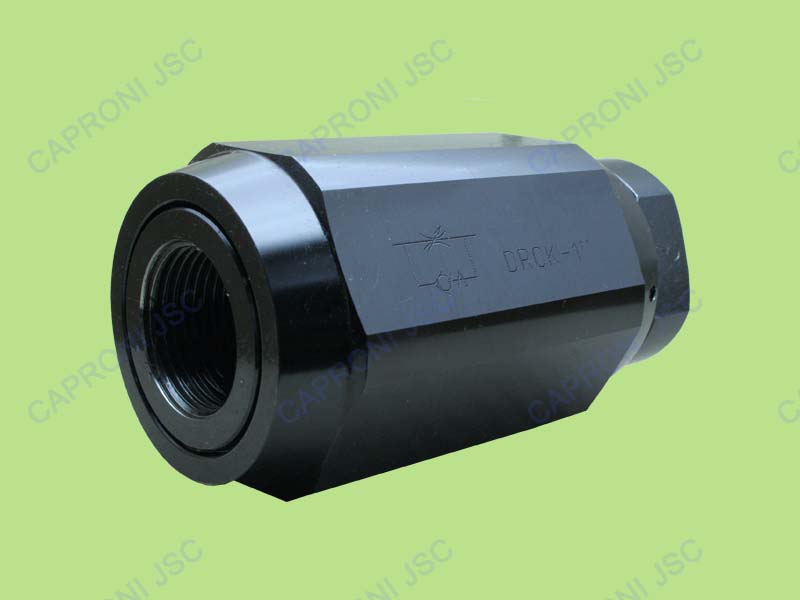

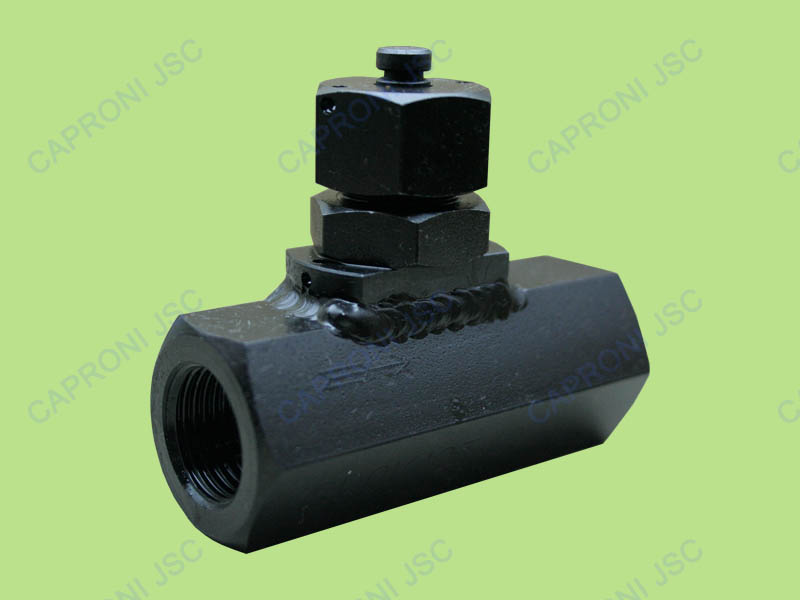

Throttle chech valve for pipe mounting |
DROK-... | 12/20/45/80/160 (Δp=2,5 bar) | 320 |
|
 |
 |

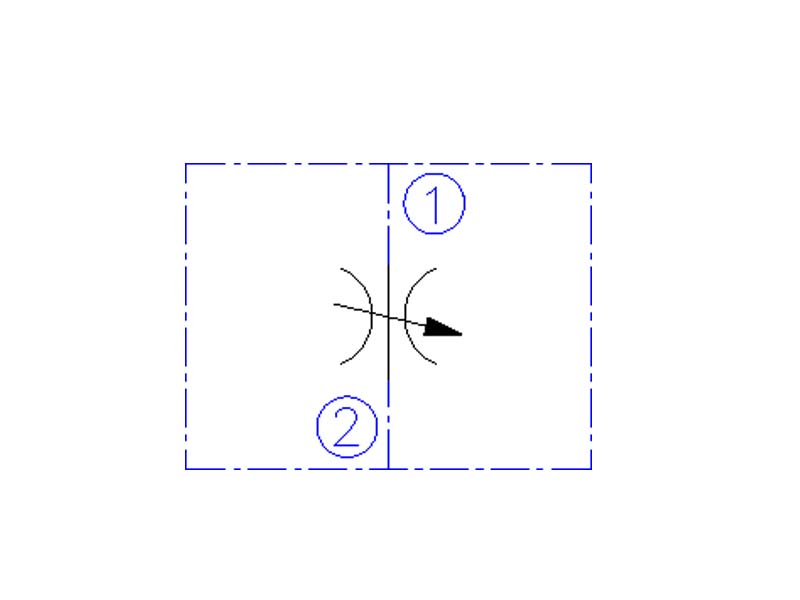

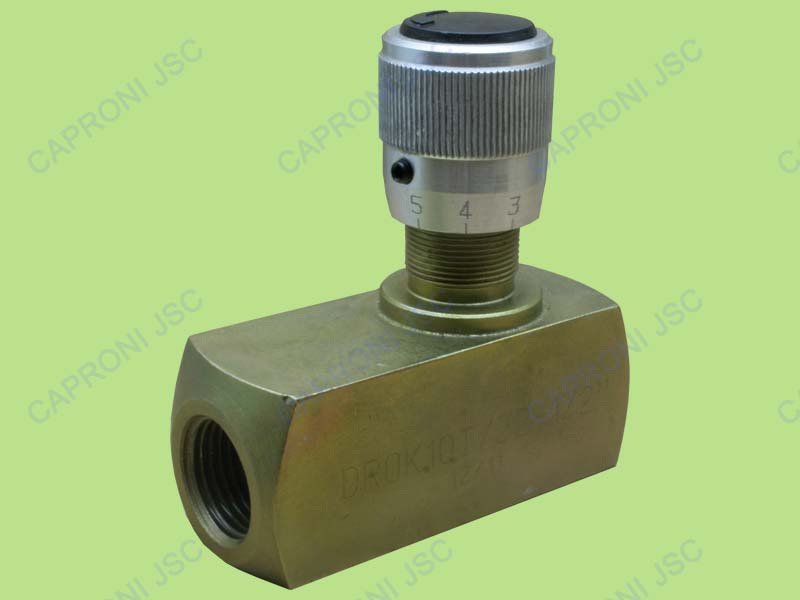

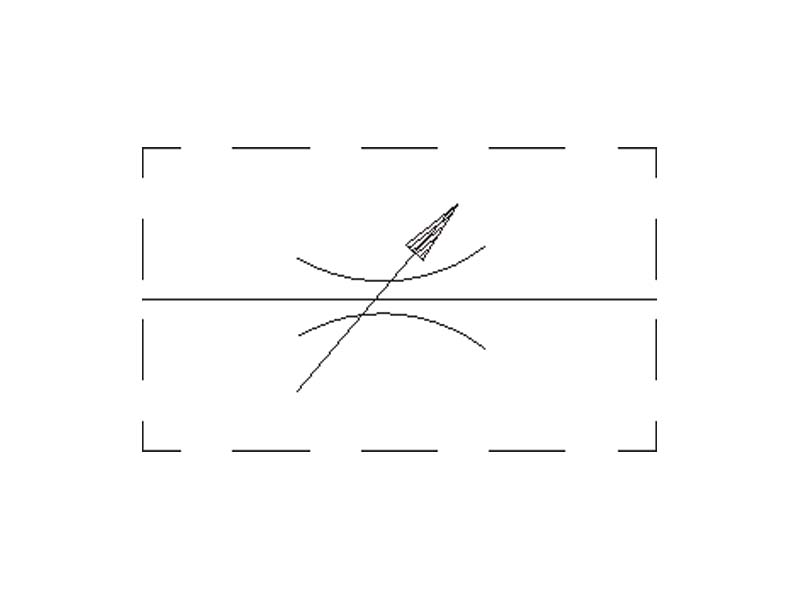

Adjustable throttle for pipe mounting |
DR-... | 12/20/45/80/160 (Δp=2,5 bar) | 320 |
|
 |
 |

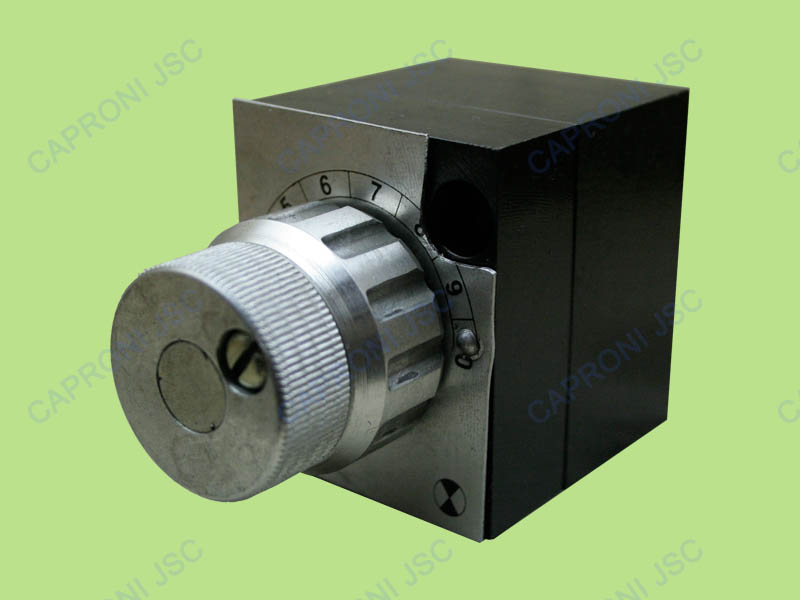

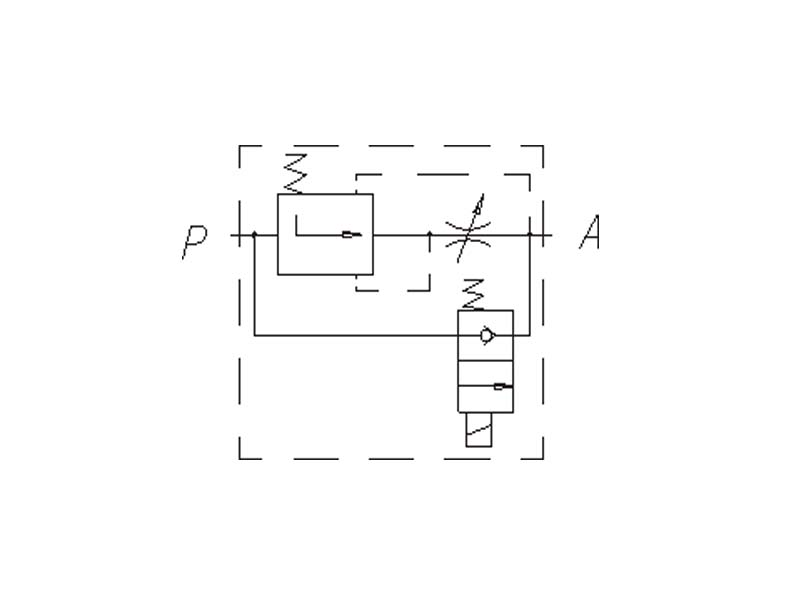

FLow regulator 2-way for plate mounting |
RD6/2P... | 10 (Δp=1 bar) | 320 |
|
 |
 |
FLow regulator 2-way for plate mounting |
RD.../2... | 24/60 (Δp=5 bar) | 320 |
|
 |
 |

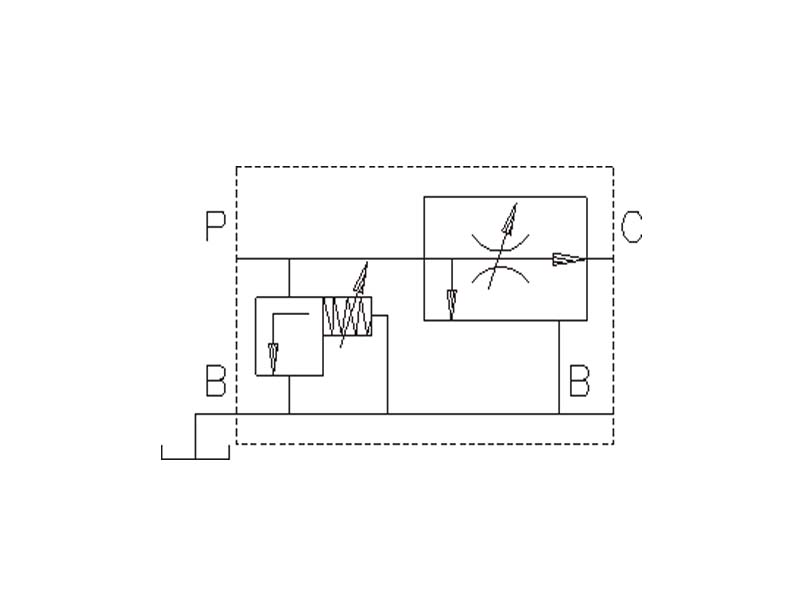

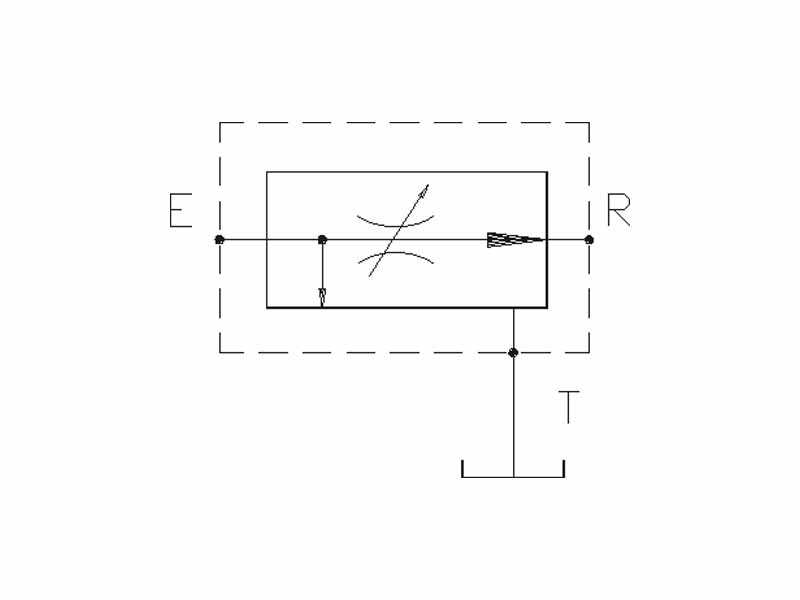

FLow regulator 3-way for pipe mounting |
RD10/3Т | 30 (Δp=5 bar) | 210 |
|
 |
 |

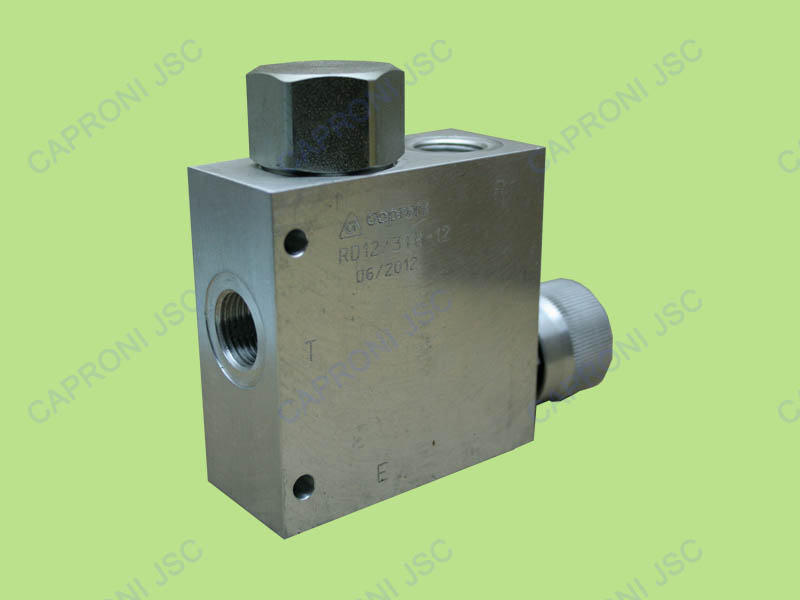

FLow regulator 3-way for pipe mounting |
RD12/3Т | 50 (Δp=5 bar) | 210 |
|
 |
 |
FLow regulator 3-way for plate mounting |
FCV-G | 40 (Δp=5 bar) | 210 |
|
 |
 |
Flow control valve 2-way for pipe mounting |
HC45... | 10/30 | 250 |
|
 |
 |
Hose burst check valve for pipe mounting |
HC970-... | 18/42/66/110 (Δp=1,5 bar) | 320 |
|
 |
 |
Deviding and combining valve plate mounting |
KDS-...... | 7/12/16/21/28/37/49/63 (Δp=2,5 bar) | 320 |
|
 |
 |

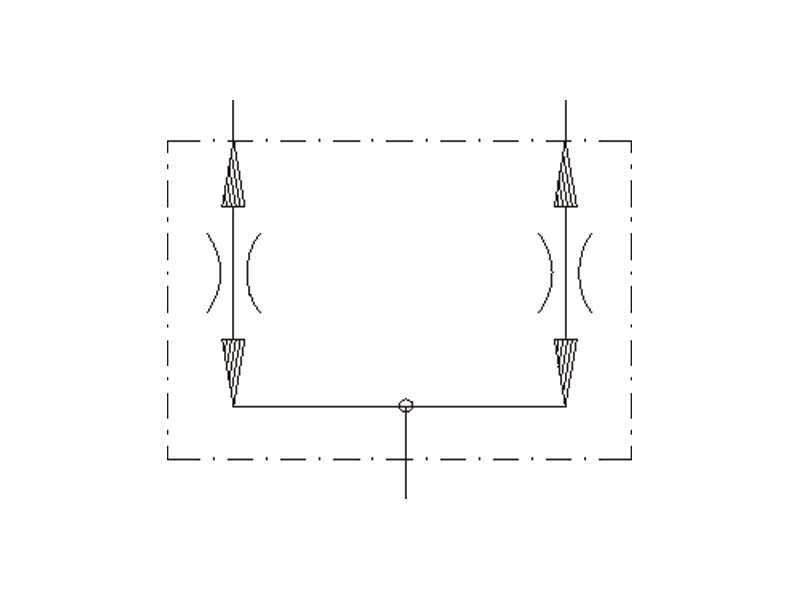

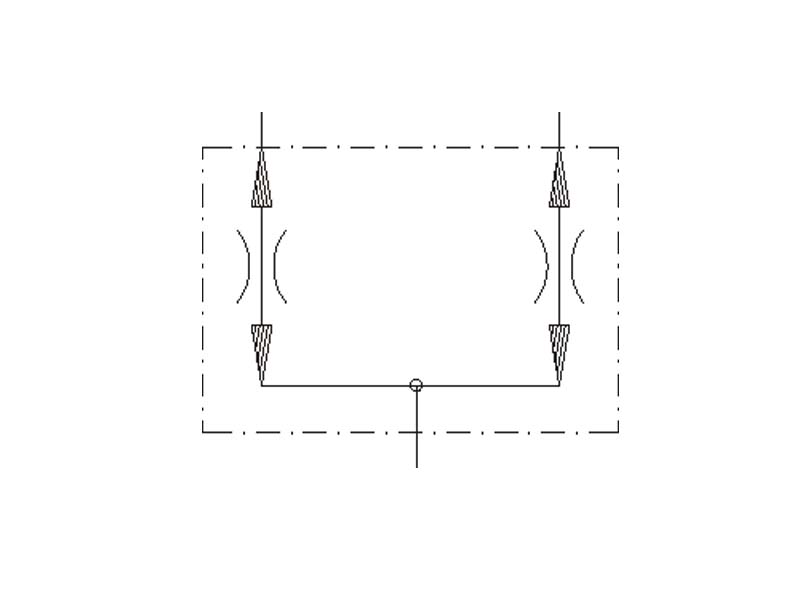

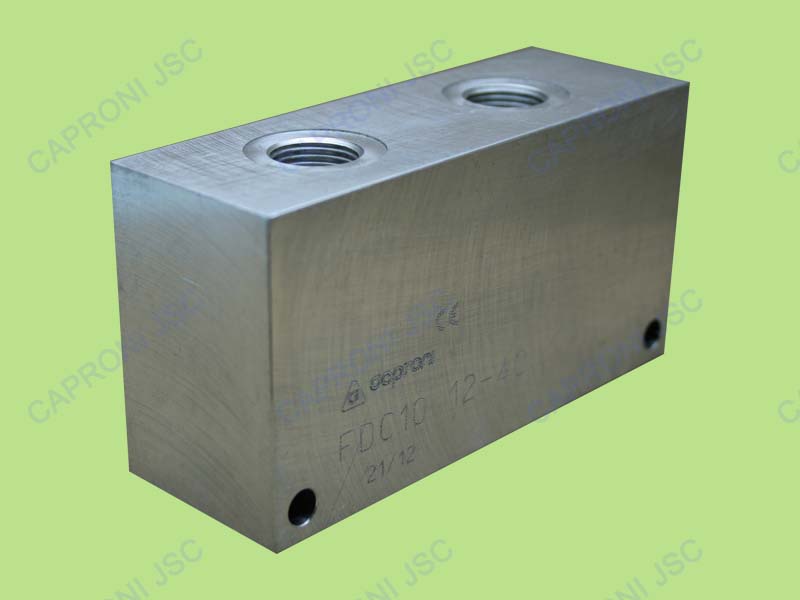

Deviding and combining valve pipe mounting |
FDC.. | 12/24/40/90/150 (Δp=2,5 bar) | 210 |
|
 |
 |

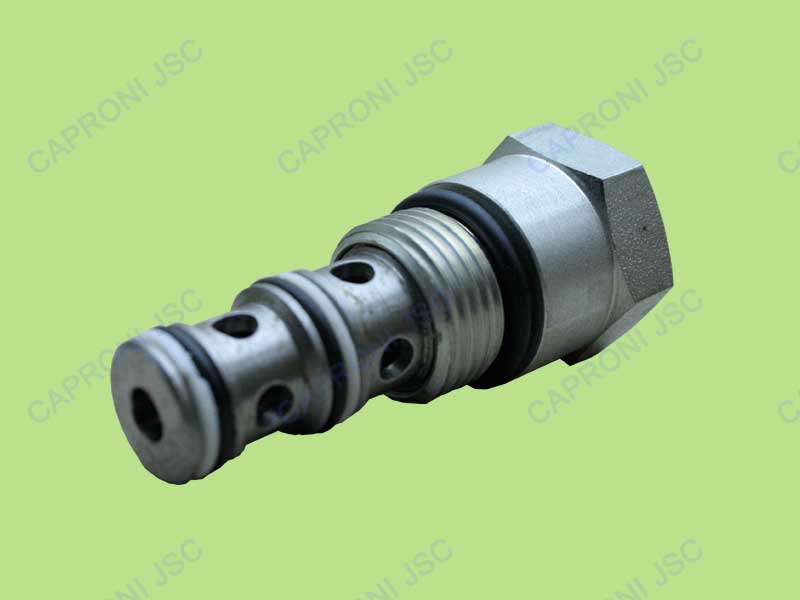

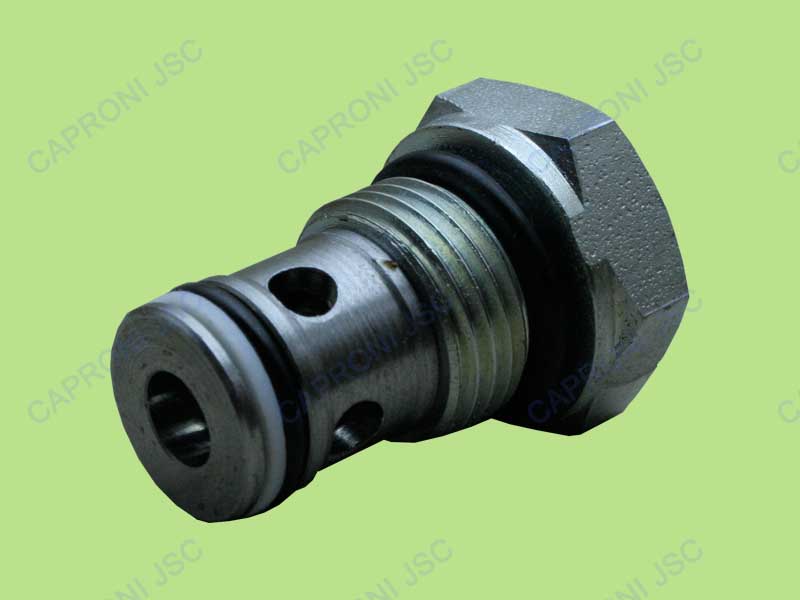

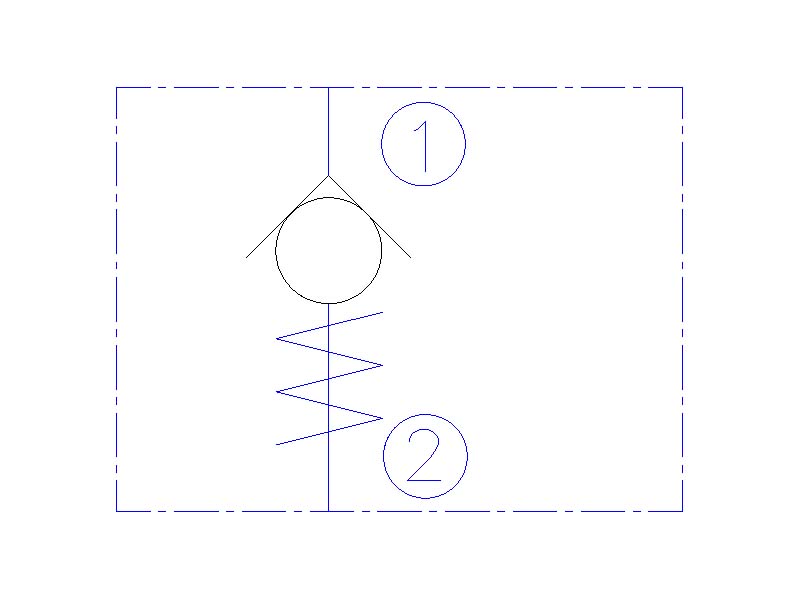

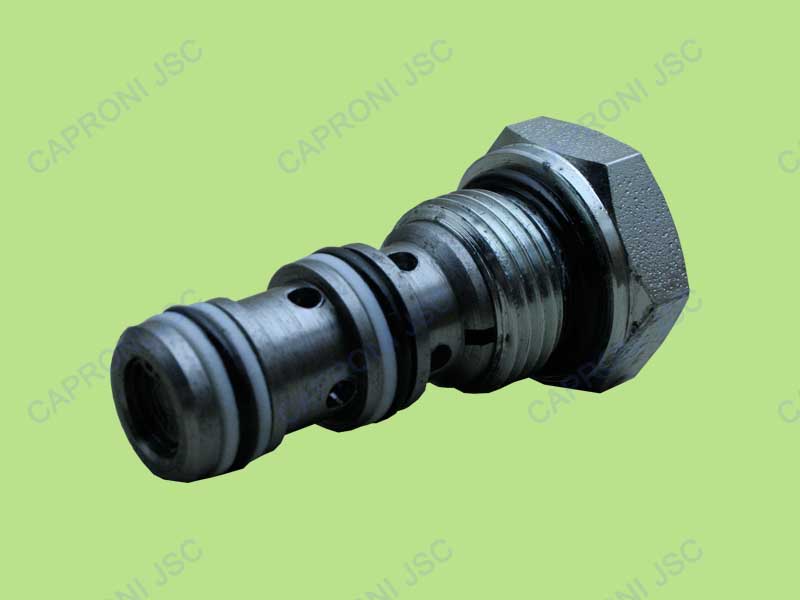

Check valve cartridge style |
CV08-2A | 23 (Δp=5,4 bar) | 250 |
|
 |
 |

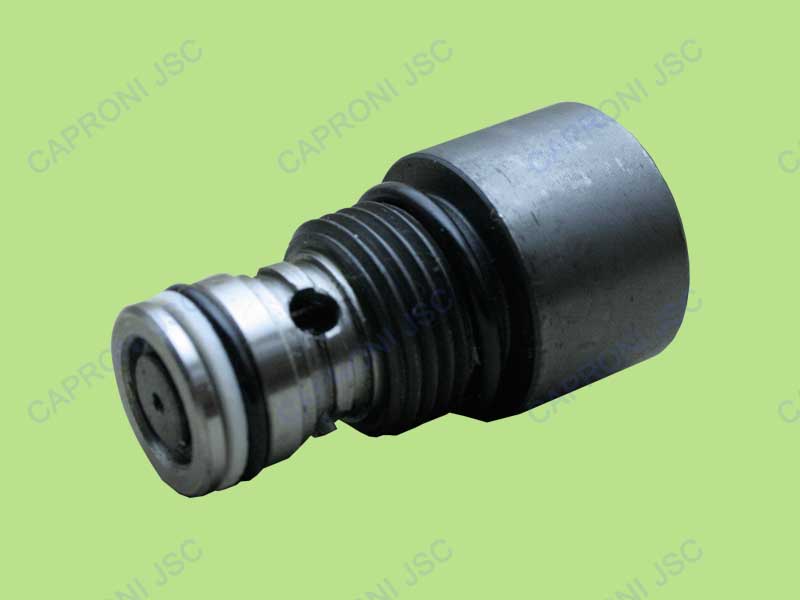

Check valve cartridge style |
CV08-2B | 30,2 (Δp=3,4 bar) | 250 |
|
)window.location='http://072.zhenrui.net/uploads/img/20121217-WTJUMMZHDCL-1355748756.JPG') |
)window.location='http://072.zhenrui.net/uploads/img/20120726-BLSAQXPYXTP-1343300800.jpg') |

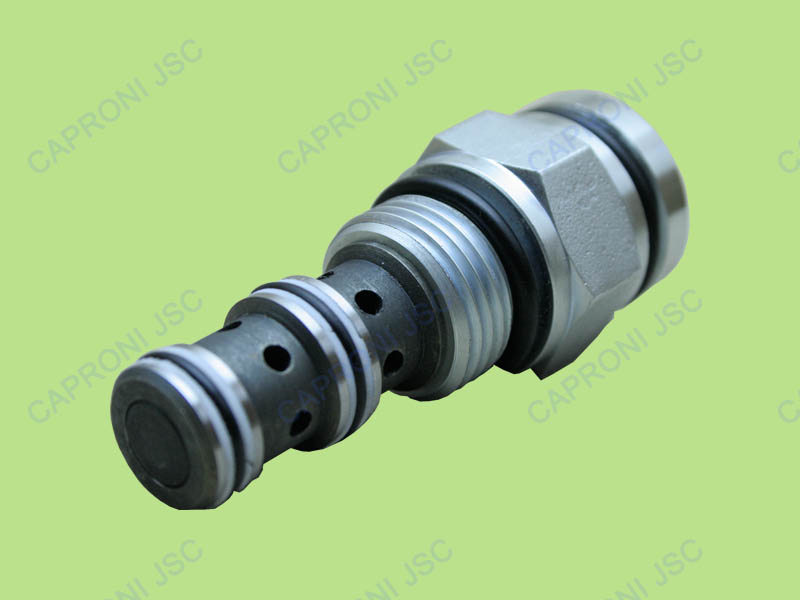

Check valve cartridge style |
CV10-2B | 60 (Δp=8,5 bar) | 250 |
|
 |
 |

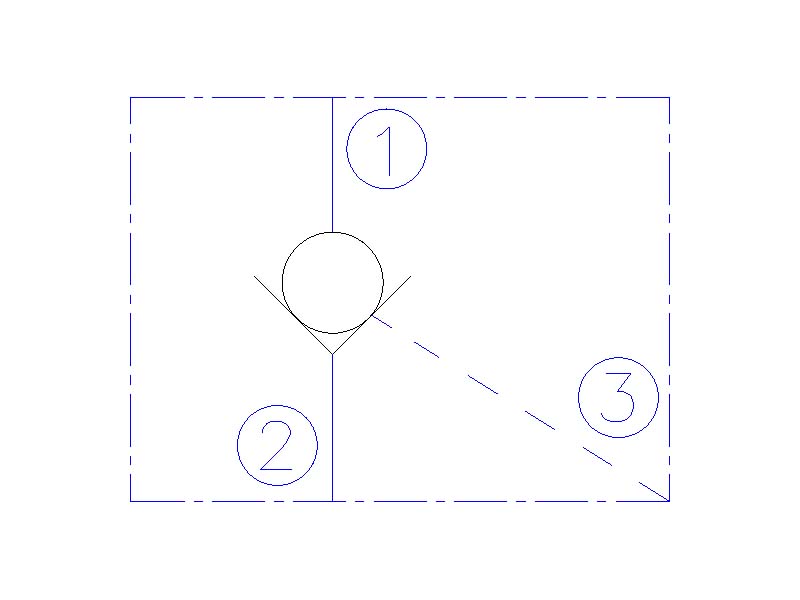

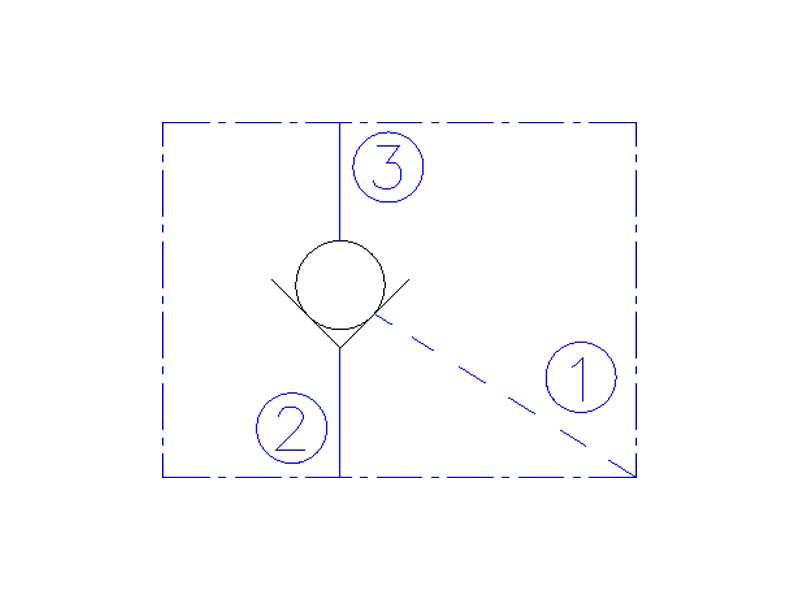

Pilot operated check valve cartridge style |
CPV08-3A | 23 (Δp=8,6 bar) | 250 |
|
 |
 |
Pilot operated check valve cartridge style |
CPV08-3B | 23 (Δp=8,6 bar) | 210 |
|
 |
 |
Adjustable throttle cartridge style |
NV06-2A | 11 (Δp=7 bar) | 250 |
|
 |
 |

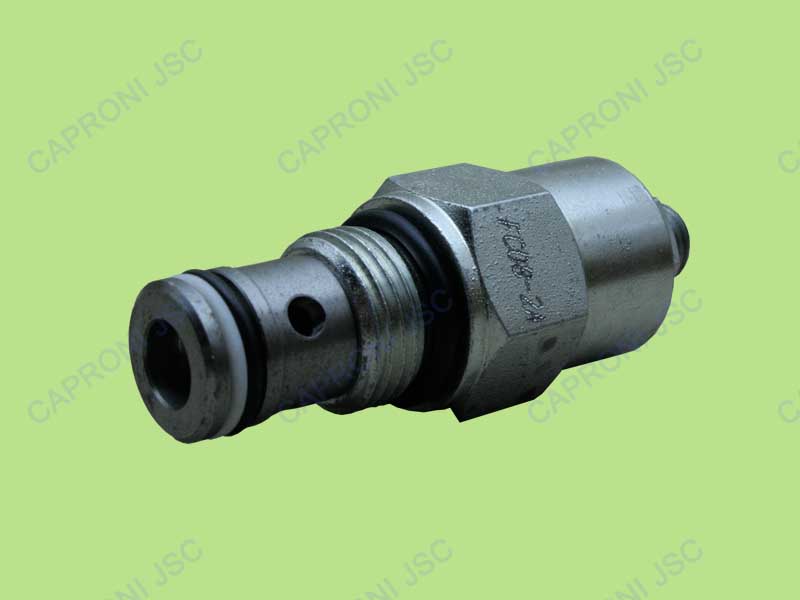

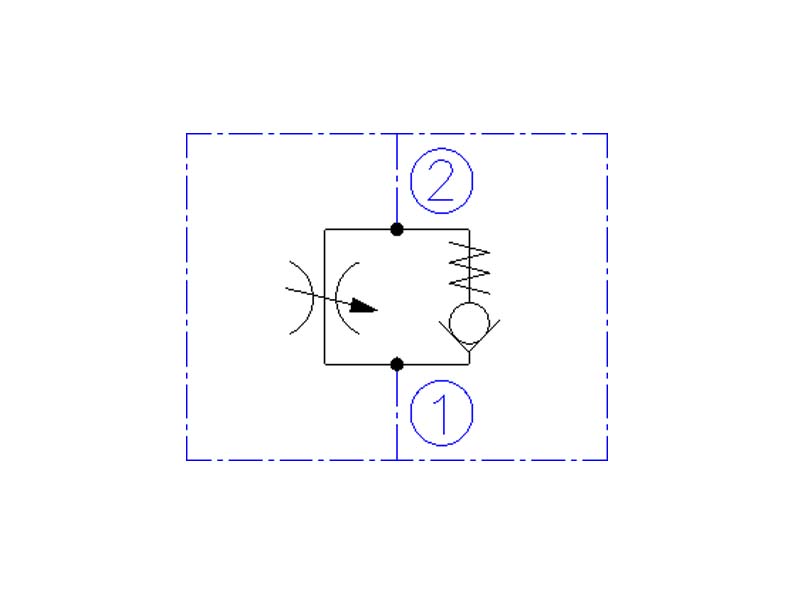

Throttle check valve cartridge style |
FC08-2A | 23 (Δp=7 bar) | 240 |
|
 |
 |

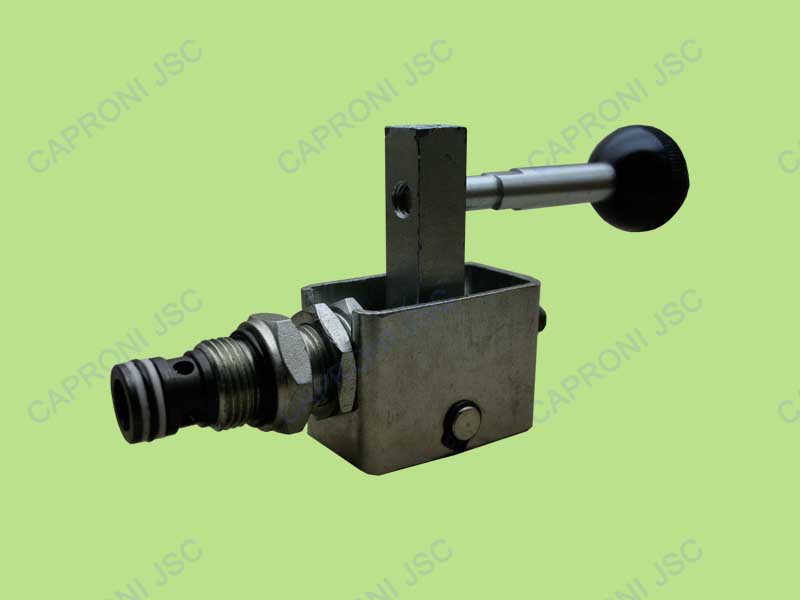

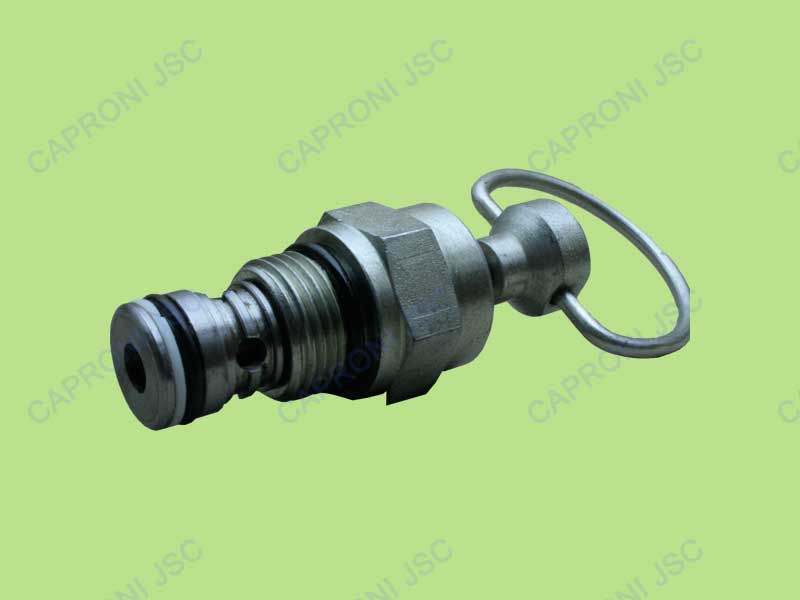

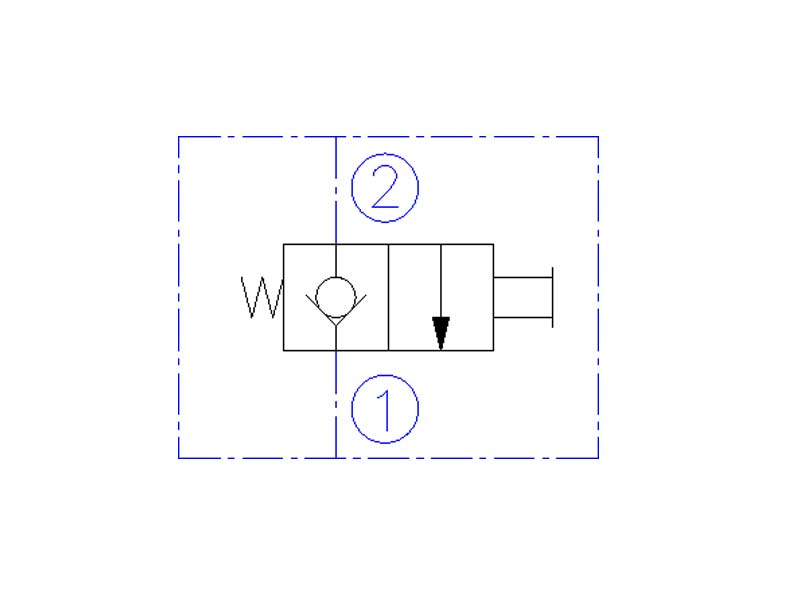

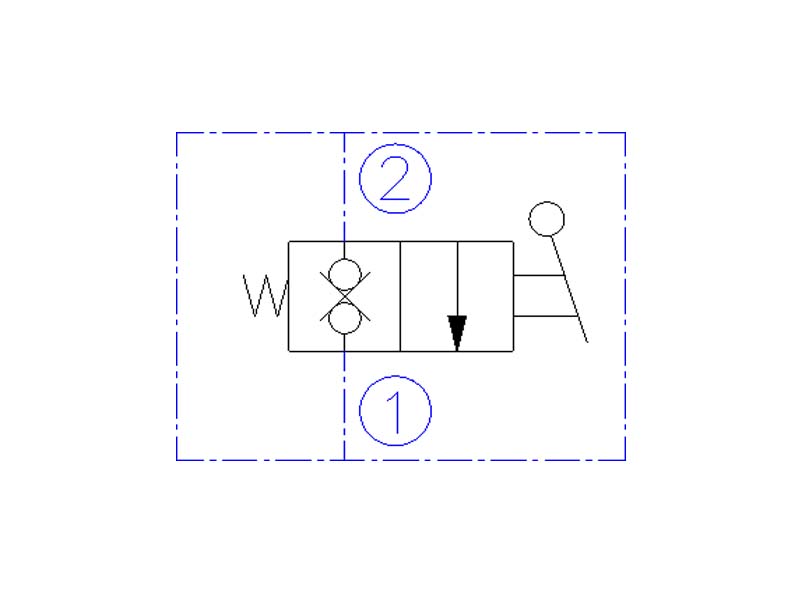

2/2 check valve manually operated, poppet type, cartridge style |
MV08-2B | 45 (Δp=6 bar) | 250 |
|
 |
 |
2/2 check valve manually operated, double locking, poppet type, cartridge style |
MV08-2B-A | 9.5 (Δp=7 bar) | 250 |
|
 |
 |

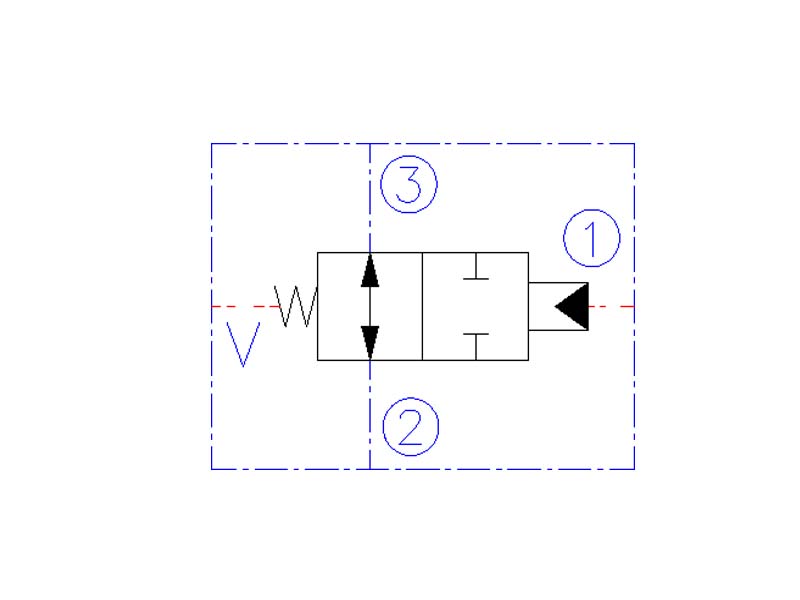

2/2 directional control valve pilot operated with external vent, spool type, cartridge style |
HV10-3A | 38 (Δp=5,2 bar) | 240 |
|
 |
 |

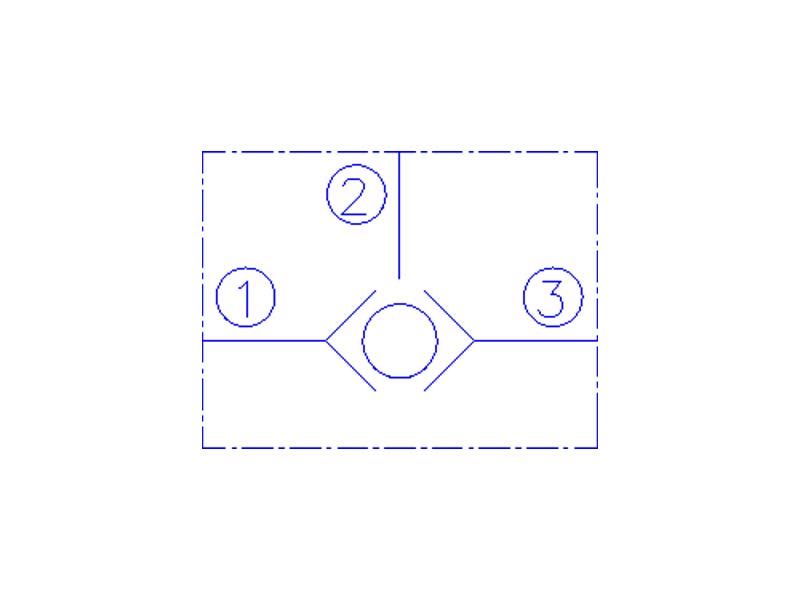

Load shuttle valve, cartridge style |
LSV10-3A | 30 (Δp=17 bar) | 210 |
|
