Pic |
Shema |
Description |
Code |
Qnom
(l/min) |
Pmax
(bar) |
PDF |
![](/uploads/img/crop-20121114-SPXKDOIXEWR-1352899346.JPG) |
![](/uploads/img/crop-20121114-OBGVVTVOQDR-1352899903.jpg) |

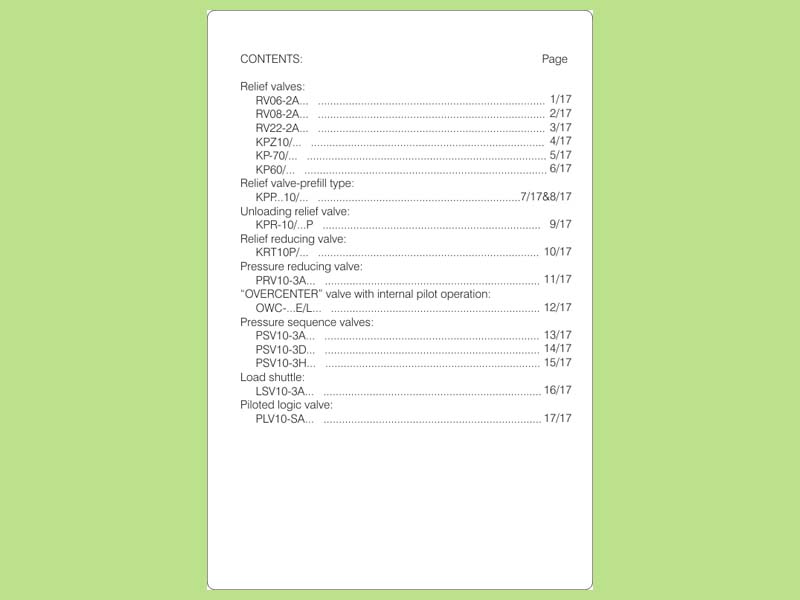

Group catalogue
|
|
|
|
![](/uploads/img/pdf.jpg) |
![KPP...10/...](/uploads/img/crop-20121204-CIYFFAFWPBG-1354620636.JPG) |
![KPP...10/...](/uploads/img/crop-20120516-CLXYKLLDGYL-1337168094.JPG) |
Relief valve-prefill type pilot operated for plate mounting
|
KPP...10/... |
160 (Δp=2,5 bar) |
100/200/320 |
![](/uploads/img/pdf.jpg) |
![KPR-10/...P](/uploads/img/crop-20121203-YFIWPUONYHA-1354539609.JPG) |
![KPR-10/...P](/uploads/img/crop-20120516-JNZGOUOJFLY-1337168106.jpg) |

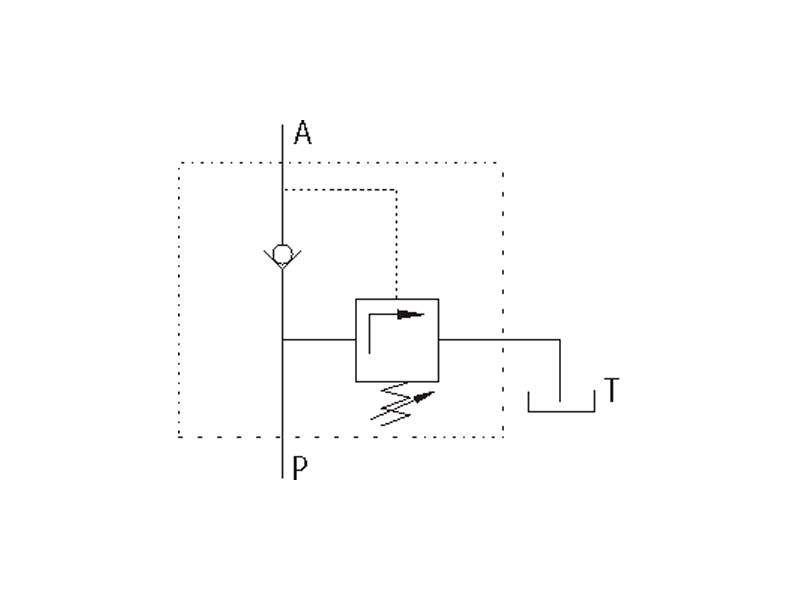

Unloading relief valve for plate mounting
|
KPR-10/...P |
40 (Δp=2,5 bar) |
63/100 |
![](/uploads/img/pdf.jpg) |
![KRT 10P/...](/uploads/img/crop-20121203-UVFTWMOFQHO-1354537769.jpg) |
![KRT 10P/...](/uploads/img/crop-20120516-LRNZJCBIEVC-1337168119.jpg) |

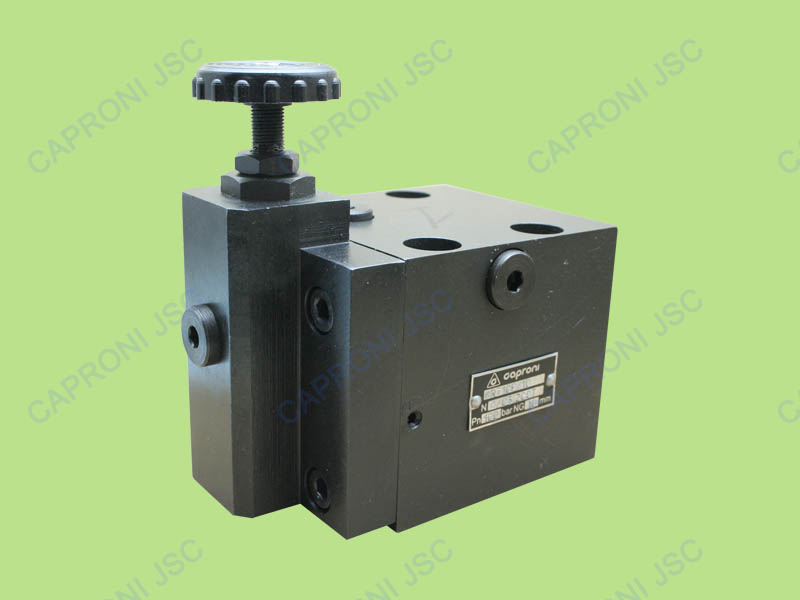

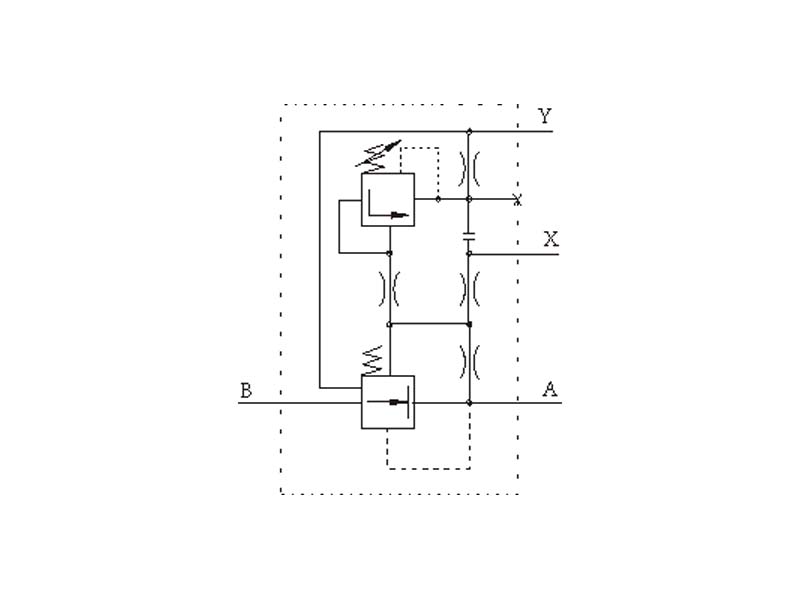

Pressure reducing valve 3-way for plate mounting
|
KRT 10P/... |
60 (Δp=2,5 bar) |
100/200/320 |
![](/uploads/img/pdf.jpg) |
![OWC-...E/L...](/uploads/img/crop-20121009-UEOIWKJANCJ-1349759602.jpg) |
![OWC-...E/L...](/uploads/img/crop-20120516-ENCBDVUIIQJ-1337168130.jpg) |

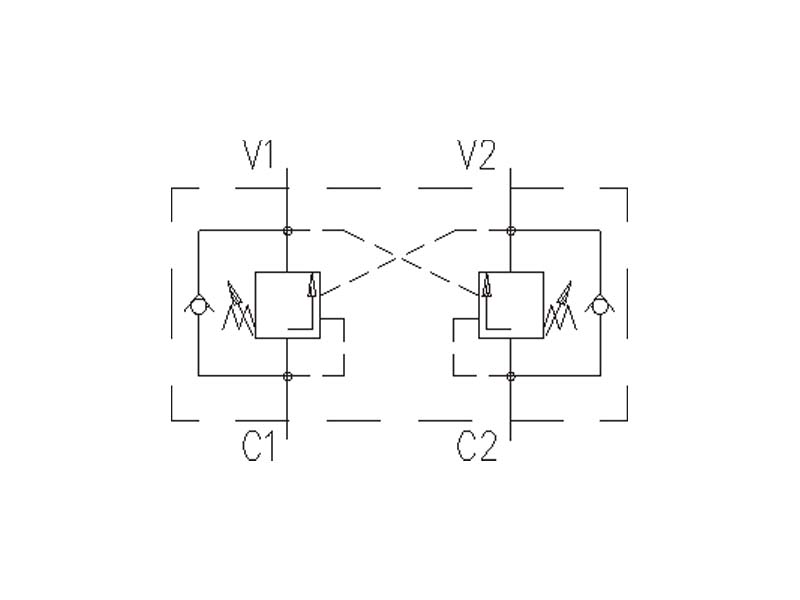

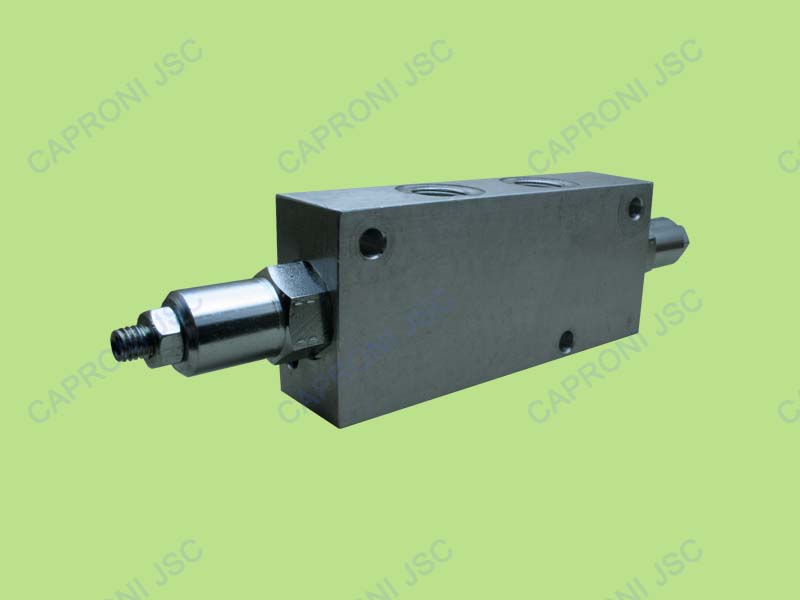

Counterbalance valve type "Overcenter" for pipe mounting
|
OWC-...E/L... |
35 (Δp=2,5 bar) |
250 |
![](/uploads/img/pdf.jpg) |
![RV06-2A...](/uploads/img/crop-20120523-IVAEVUOZUEK-1337759626.jpg) |
![RV06-2A...](/uploads/img/crop-20120516-EENBHTRCLFH-1337168144.jpg) |

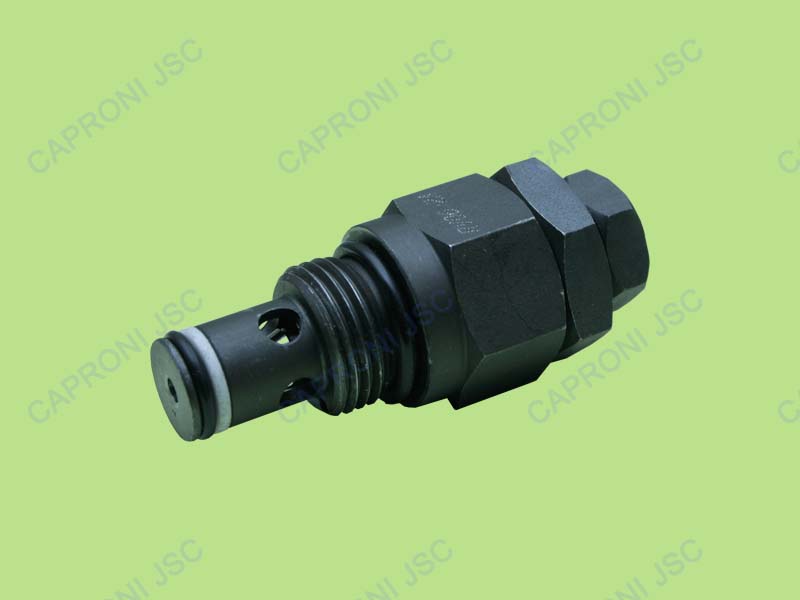

Pressure relief valve direct acting cartridge style
|
RV06-2A... |
20 (Δp=2,5 bar) |
80/160/250 |
![](/uploads/img/pdf.jpg) |
![RV08-2A...](/uploads/img/crop-20120523-PKYFNPLIEJN-1337760267.JPG) |
![RV08-2A...](/uploads/img/crop-20120516-ATVKRGMQVUY-1337168157.jpg) |
Pressure relief valve direct acting cartridge style
|
RV08-2A... |
25 (Δp=2,5 bar) |
80/160/250 |
![](/uploads/img/pdf.jpg) |
![RV22-2A...](/uploads/img/crop-20120523-GMXRHXMKHFP-1337761073.JPG) |
![RV22-2A...](/uploads/img/crop-20120516-WZJUEHCMFQX-1337168172.jpg) |

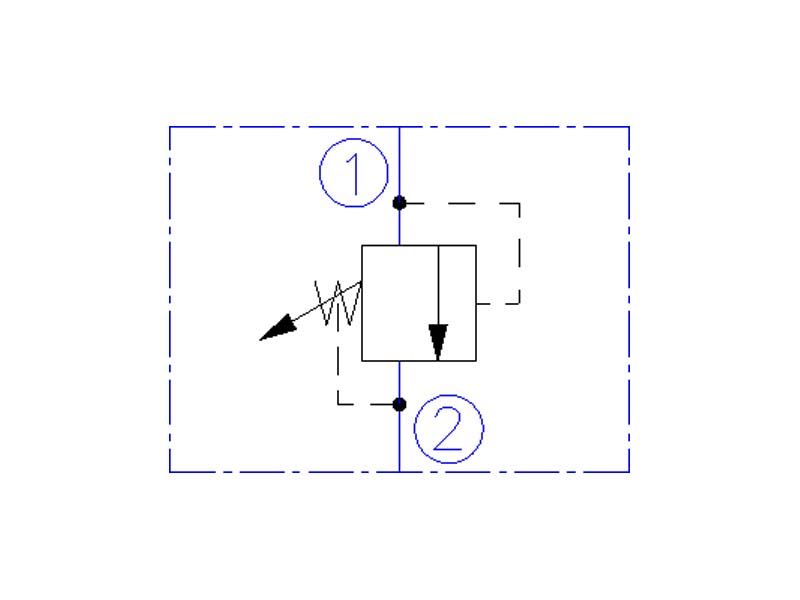

Pressure relief valve direct acting cartridge style
|
RV22-2A... |
40 (Δp=2,5 bar) |
100/200/315 |
![](/uploads/img/pdf.jpg) |
![KP60/...](/uploads/img/crop-20120523-XGPGPPJPZYY-1337774386.jpg) |
![KP60/...](/uploads/img/crop-20120516-YLSDIJWYOFE-1337170599.jpg) |

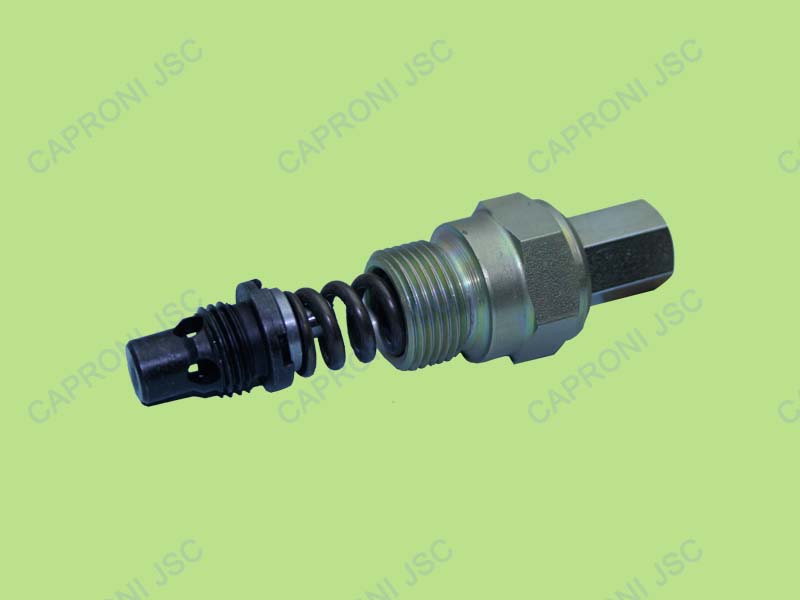

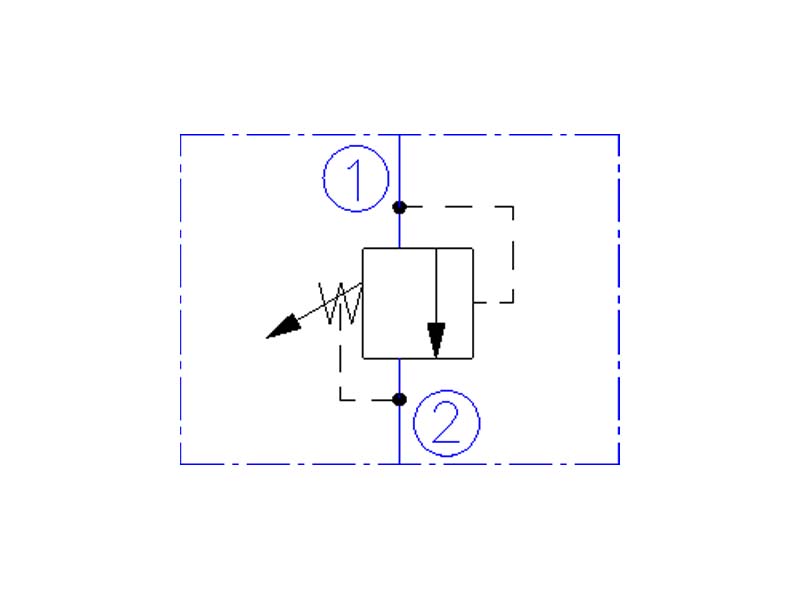

Pressure relief valve direct operated, cartridge style
|
KP60/... |
60 (Δp=20 bar) |
100/200/320 |
![](/uploads/img/pdf.jpg) |
![KP70/...](/uploads/img/crop-20120523-EHKIFWMUJYS-1337773917.JPG) |
![KP70/...](/uploads/img/crop-20120516-DQMHJWKIOWE-1337170614.jpg) |

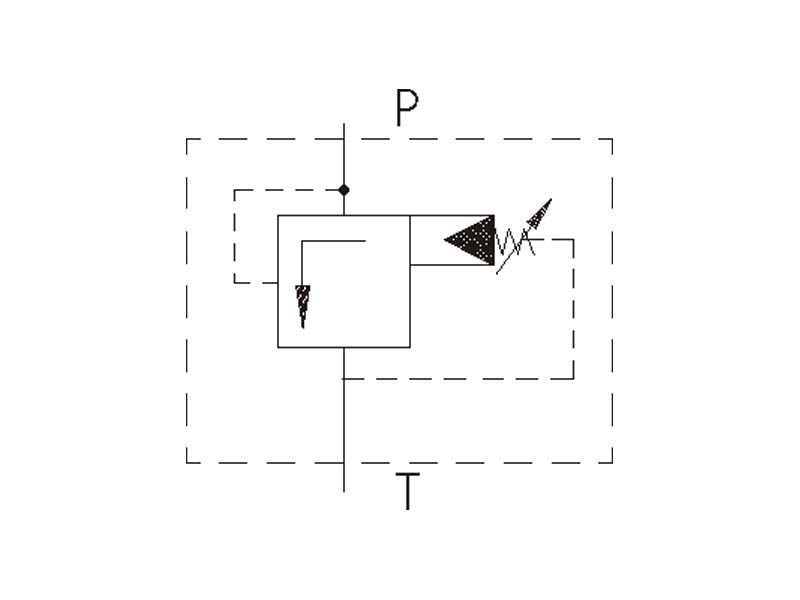

Pressure relief valve pilot operated, cartridge style
|
KP70/... |
70 (Δp=20 bar) |
200/320 |
![](/uploads/img/pdf.jpg) |
![RM80](/uploads/img/crop-20170221-LTPBDYTXQAT-1487662290.jpg) |
![RM80](/uploads/img/crop-20170221-EMQXRPRBVMS-1487662269.jpg) |

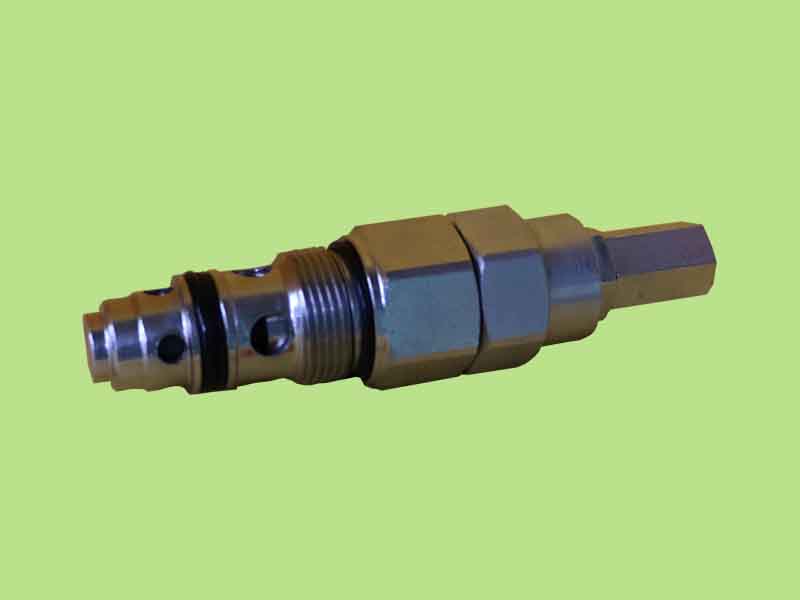

Pressure relief valve direct acting cartridge style
|
RM80 |
80 (Δp=20 bar) |
130/300 |
![](/uploads/img/pdf.jpg) |
![KPZ-10/...](/uploads/img/crop-20121204-CDCVCOTEOIR-1354621410.JPG) |
![KPZ-10/...](/uploads/img/crop-20120516-SAKBESHHNLF-1337170584.jpg) |

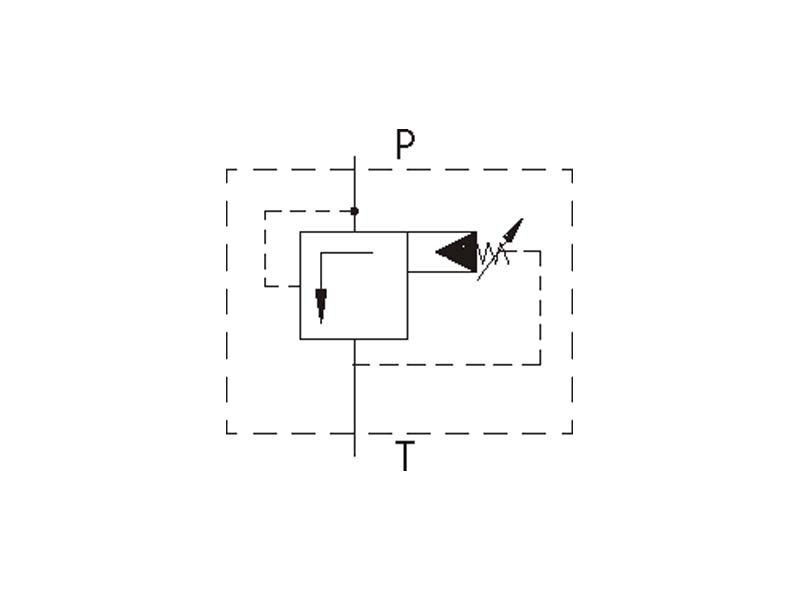

Pressure relief valve pilot operated, cartridge style
|
KPZ-10/... |
160 (Δp=20 bar) |
100/200/320 |
![](/uploads/img/pdf.jpg) |
![PRV10-3A...](/uploads/img/crop-20121217-VZSZBPZNIQQ-1355730804.JPG) |
![PRV10-3A...](/uploads/img/crop-20120516-XVAHENIOQDG-1337168192.jpg) |

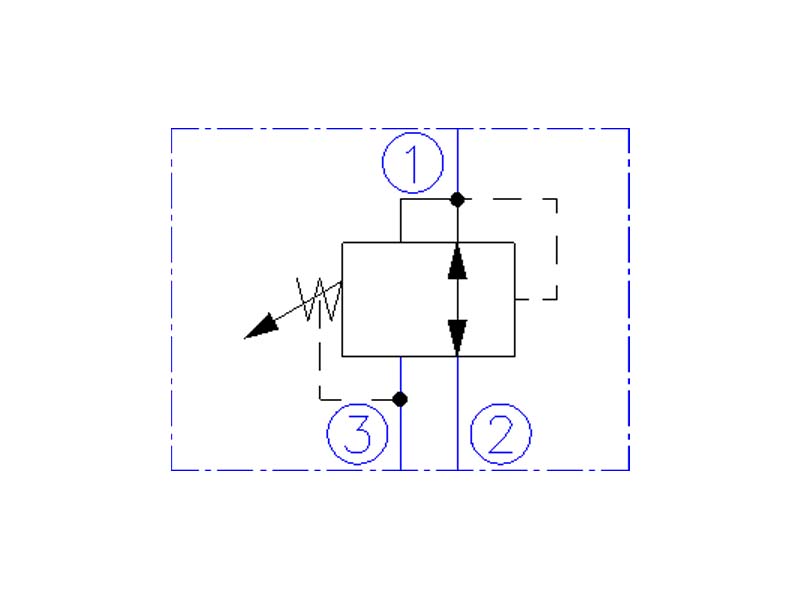

Pressure reducing valve 3-way direct acting, spool type, cartridge style
|
PRV10-3A... |
30 (Δp=2,5 bar) |
30/60/100/140 |
![](/uploads/img/pdf.jpg) |
![PSV10-3A...](/uploads/img/crop-20121217-QKXPVNXGNDF-1355729607.jpg) |
![PSV10-3A...](/uploads/img/crop-20120516-BEXANFEPZMG-1337168267.jpg) |

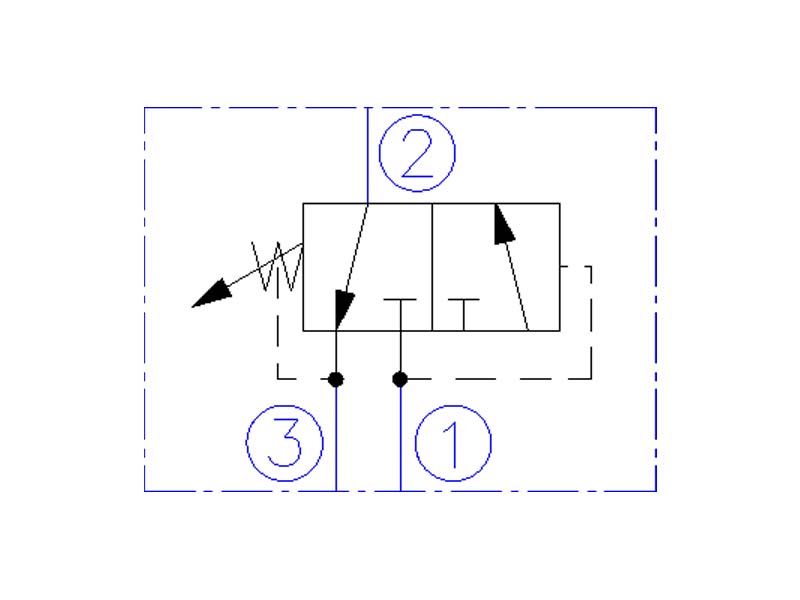

Pressure sequence valve 3-way direct acting, spool type, cartridge style
|
PSV10-3A... |
23 (Δp=2,5 bar) |
200 |
![](/uploads/img/pdf.jpg) |
![PSV10-3D...](/uploads/img/crop-20121217-RHYJMBHGCAH-1355730753.JPG) |
![PSV10-3D...](/uploads/img/crop-20120516-LALUAIPMGWK-1337168214.jpg) |
Pressure sequence valve 3-way direct acting, spool type, cartridge style
|
PSV10-3D... |
23 (Δp=8,8 bar) |
200 |
![](/uploads/img/pdf.jpg) |
![PSV10-3H...](/uploads/img/crop-20121217-IAHIKUESDWP-1355733148.JPG) |
![PSV10-3H...](/uploads/img/crop-20120726-TKFOTJXQEGZ-1343300357.jpg) |

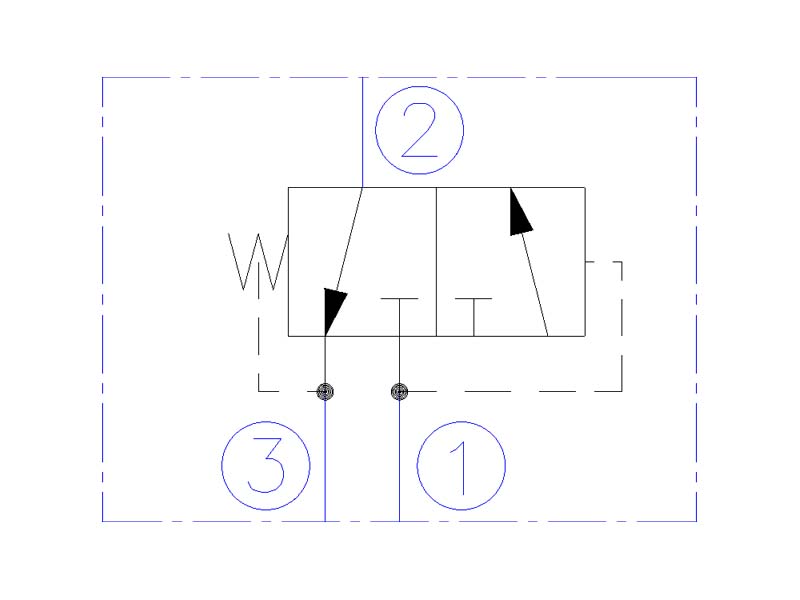

Pressure sequence valve 3-way direct acting, spool type, cartridge style
|
PSV10-3H... |
34 (Δp=7 bar) |
200 |
![](/uploads/img/pdf.jpg) |
![PLV10-SA](/uploads/img/crop-20120515-DWOEHARCOPF-1337087514.jpg) |
![PLV10-SA](/uploads/img/crop-20120516-CMXVFVHPKFW-1337170564.jpg) |

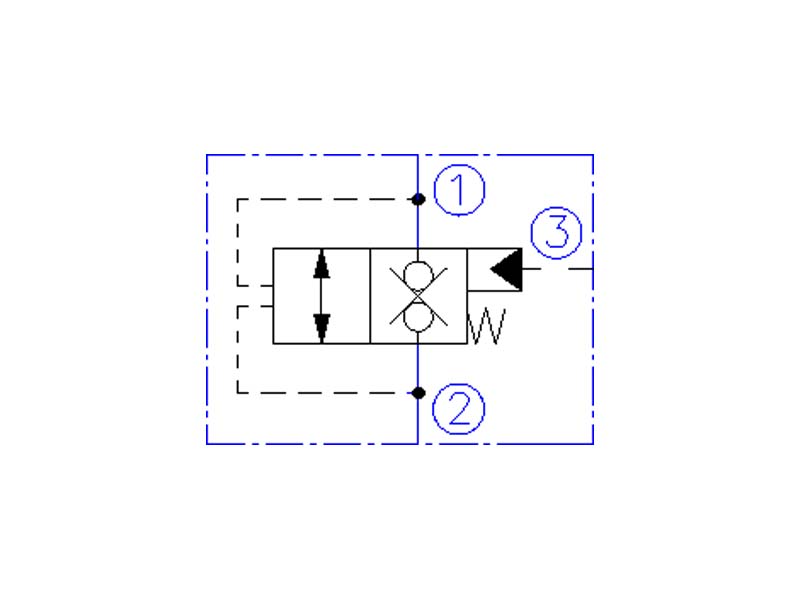

Logical valve pilot operated, cartridge style
|
PLV10-SA |
61 (Δp=8,6 bar) |
350 |
![](/uploads/img/pdf.jpg) |
![UVP-NG10](/uploads/img/crop-20150721-ZBOYGPFYOII-1437482154.jpg) |
![UVP-NG10](/uploads/img/crop-20150721-CEXGMALSMHT-1437483936.jpg) |

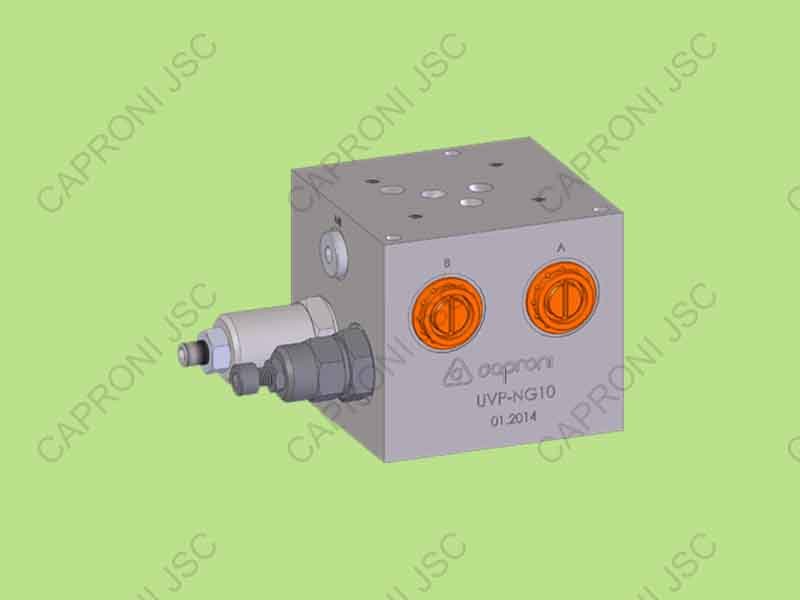

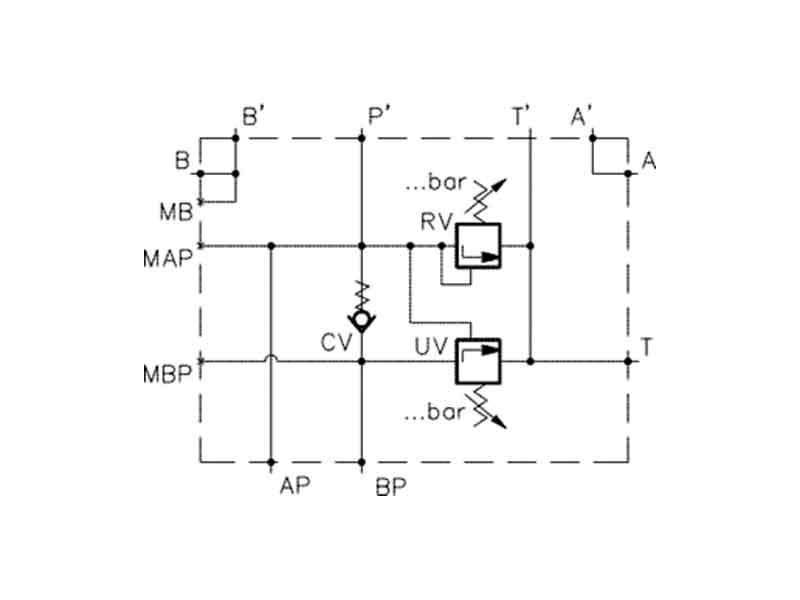

Two pump „HI-LOW” unloading valve , flangeable CETOP5 (NG10)
|
UVP-NG10 |
AP-20 ; BP-55 |
AP-300 ; BP-70 |
![](/uploads/img/pdf.jpg) |
![UVP-...](/uploads/img/crop-20170220-KLJDCYYVCHN-1487600591.jpg) |
![UVP-...](/uploads/img/crop-20160608-FCTWKRAHFWO-1465381162.jpg) |

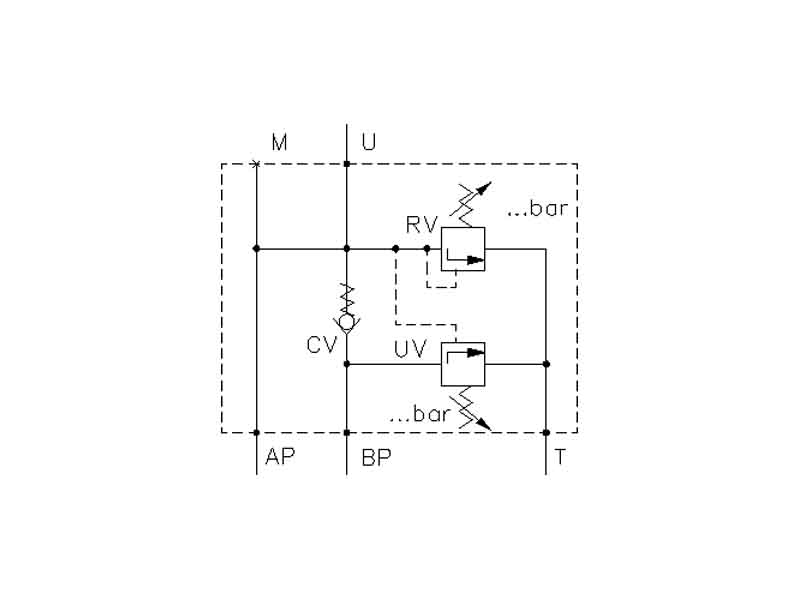

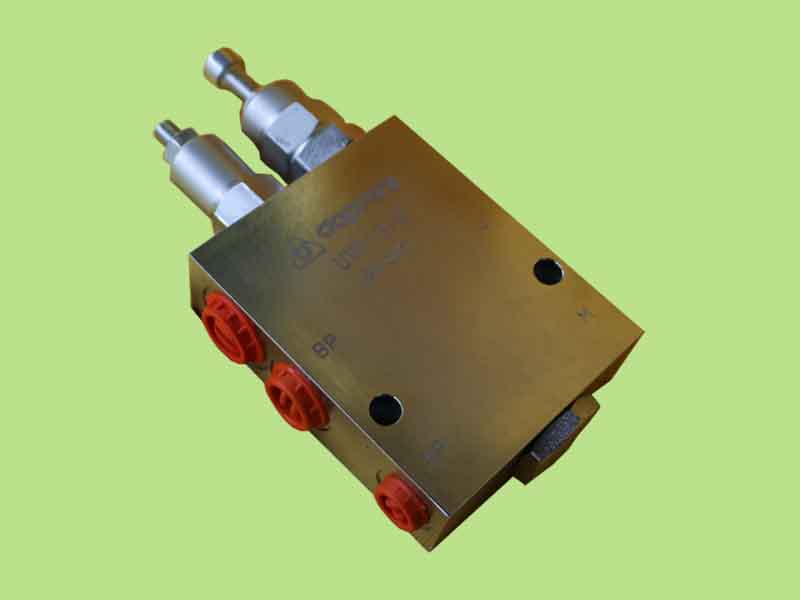

Two pump “hi-low” unloading valve
|
UVP-... |
AP-15/25 BP-30/45;T-40/65 |
AP-300 ; BP-80 |
![](/uploads/img/pdf.jpg) |
